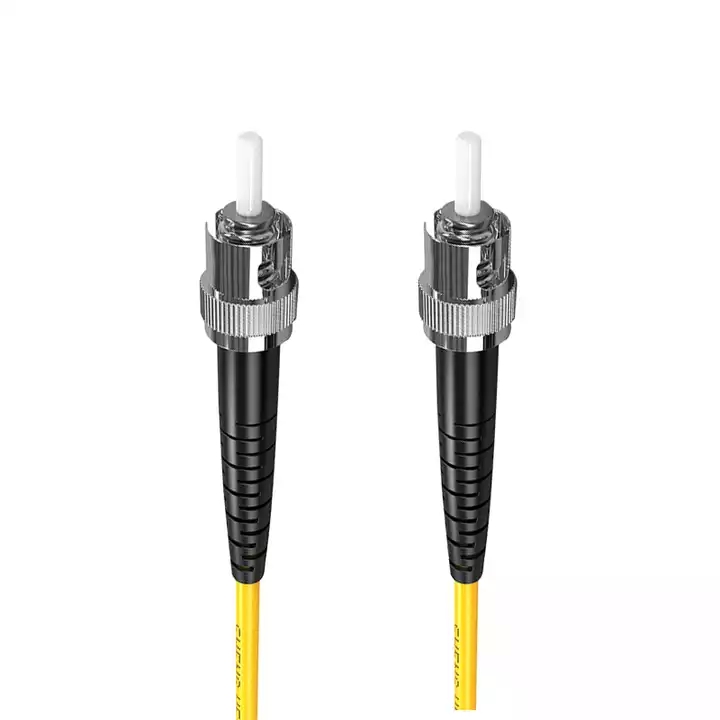

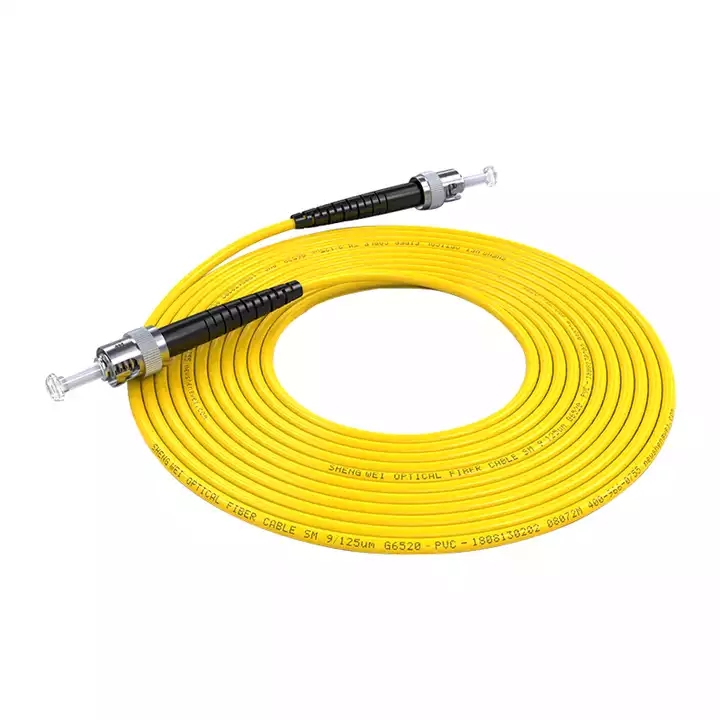

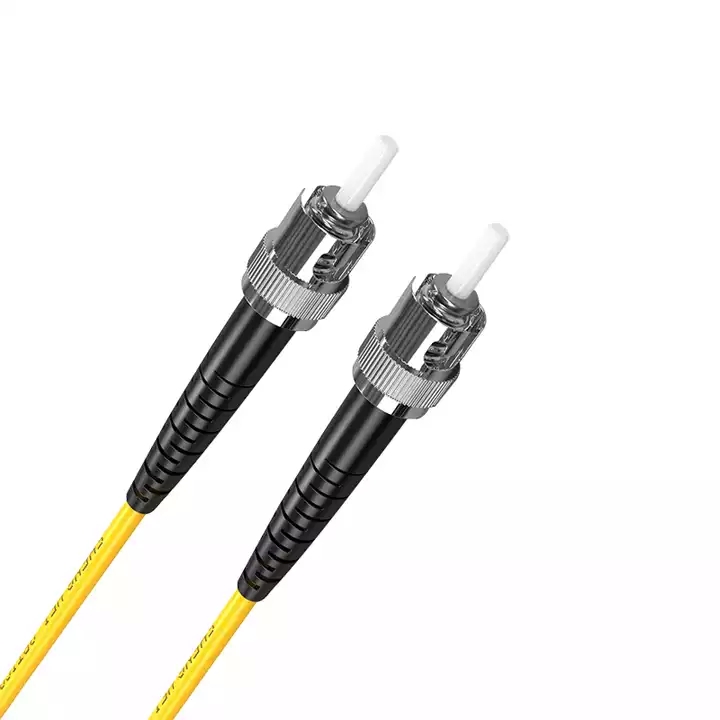

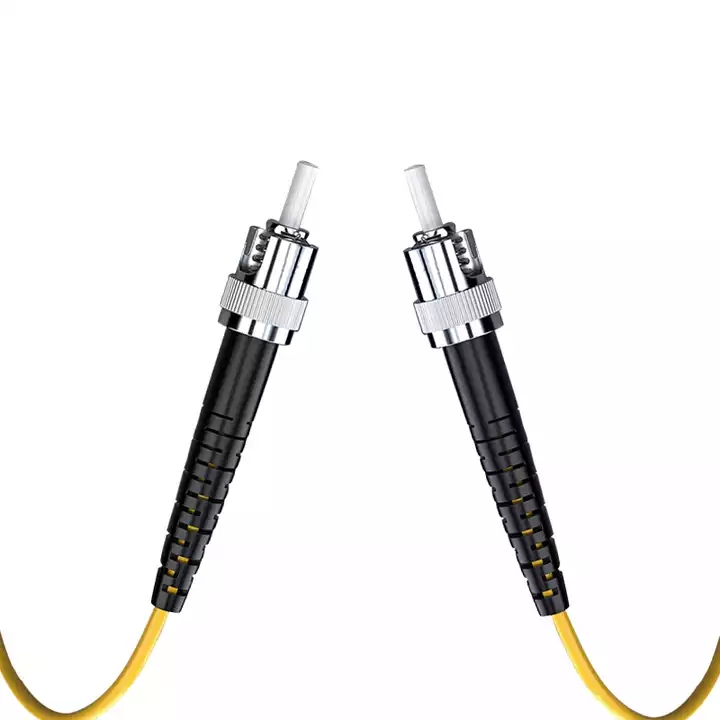

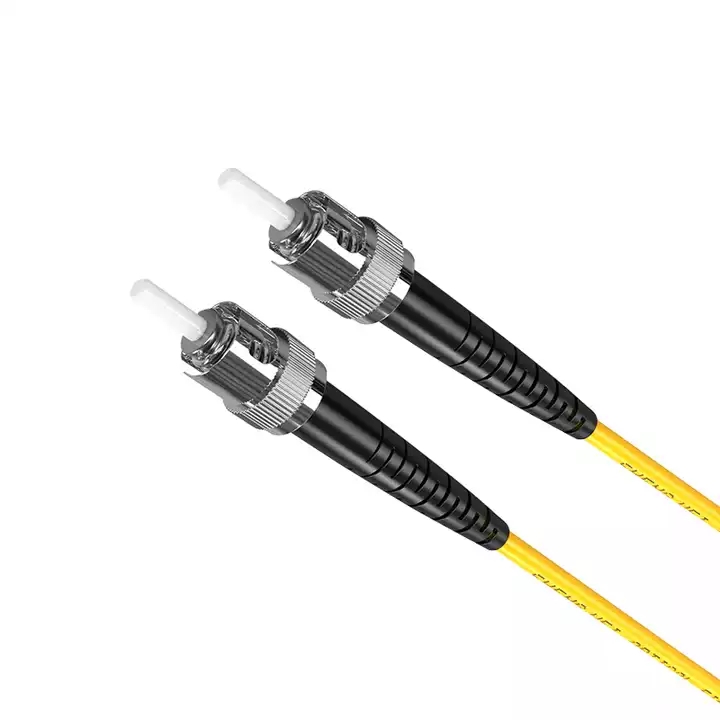

Duplex ST/APC Patch Cord

Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA.
Ferrule End-face: PC, UPC, APC.
Core Type: Single-mode (SM: 9/125um), Muti-mode (MM: 50/125um or 62.5/125um)
Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
Cable Length: 1, 2, 3 meter or customized
Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum, Armored.
Patch cord/pigtail

Product description

Features

Low insertion loss and back reflection loss

Good changeability Good Durability

High temperature stability

CE, ROHS, FCC

Superior quality standard PC/UPC/APC polishing

Applications

Cabling system, ODF

Optical fiber communication systems

Optical fiber data transmission

Telecom network

Optical fiber sensor

Optical fiber test equipment

Optical fiber communication system

FTTH, LAN, PON & Optical CATV

Specifications

Item	Unit	LC/SC/FC/ST Fiber Patch Cord
Item	Unit	SM			MM
Fiber Diameter	UM	9/125			65.5/125	50/125
Polishing		PC	UPC	APC	PC	PC
Insertion Loss	dB	≤0.2	≤0.15	≤0.2	≤0.1	≤0.1
Return Loss	dB	≥55	≥50	≥60	≥35dB	≥35dB
Insert-pull Test	dB	≤0.2	≤0.2	≤0.3	≤0.15	≤0.15
Interchangeability	dB	≤0.1	≤0.1	≤0.15	≤0.1	≤0.1
Temperature Range	℃	-40~+80
Durability(1/Matings)	≥1000
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber	9/125um, 50/125um,62.5/125um, etc.
Diameter	0.9mm, 2.0mm, 3.0mm, etc.
Cores	Simplex, duplex, 4cores, 6cores, 8cores, 12cores, etc.
