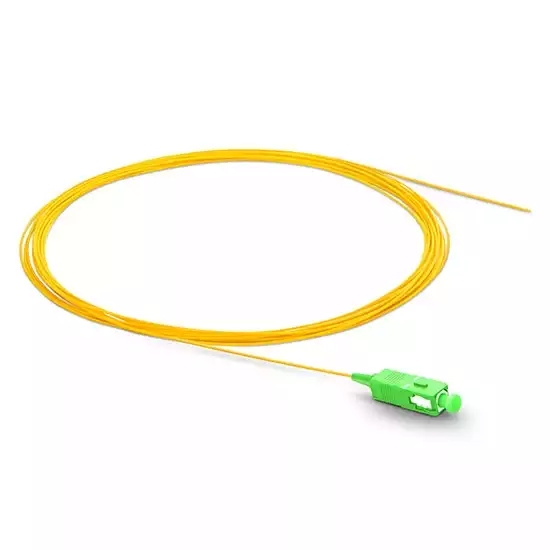

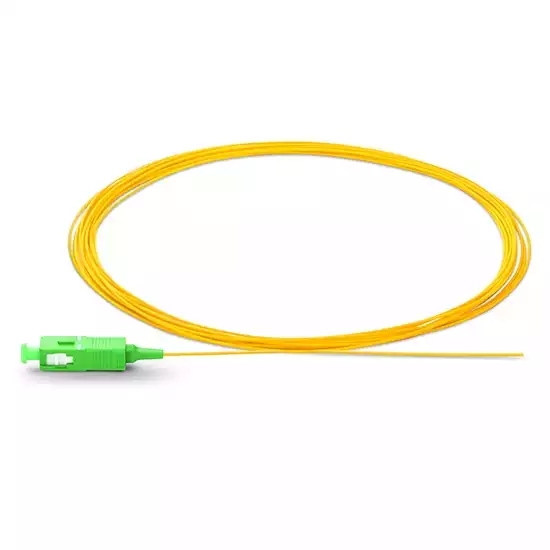

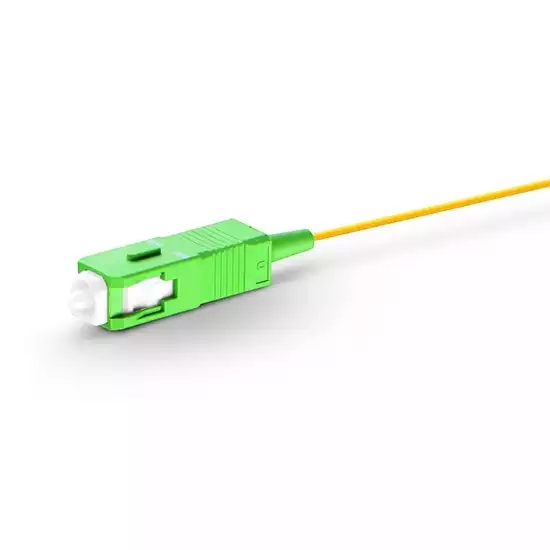

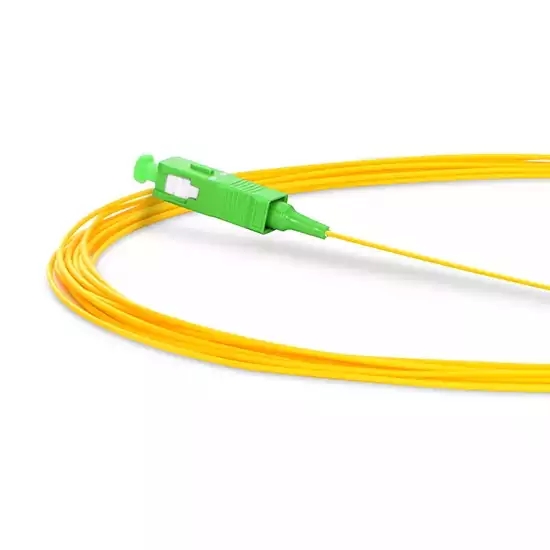

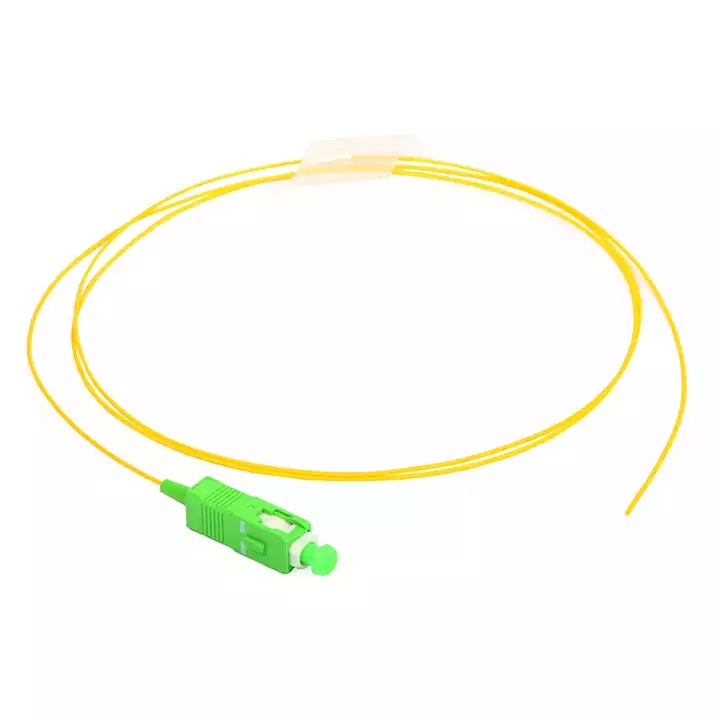

SC/APC Fiber Pigtail
Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure.

The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged.

If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.
Product description

Features

Compliant with the standard of IEC

High Return Loss

Low Insertion Loss

Good reliability and stability

Polishing type: PC, UPC, and APC

Various interfaces: SC/FC/SC/ST

Specifications

Product name

Fiber Optic Pigtail

Color

Yellow

Fiber mode

9/125μm

Polish type

APC

Cable Jacket

PVC

Wavelength

1310nm/1550nm

Insertion loss

≥0.3dB

Return loss

≥60dB

Operating temperature

-40℃~75℃

Fiber Count

Simplex

Cable diameter

0.9mm

Durability

500 times

Interchangeability

≤0.2dB

Storage temperature

-45~85℃
