Features

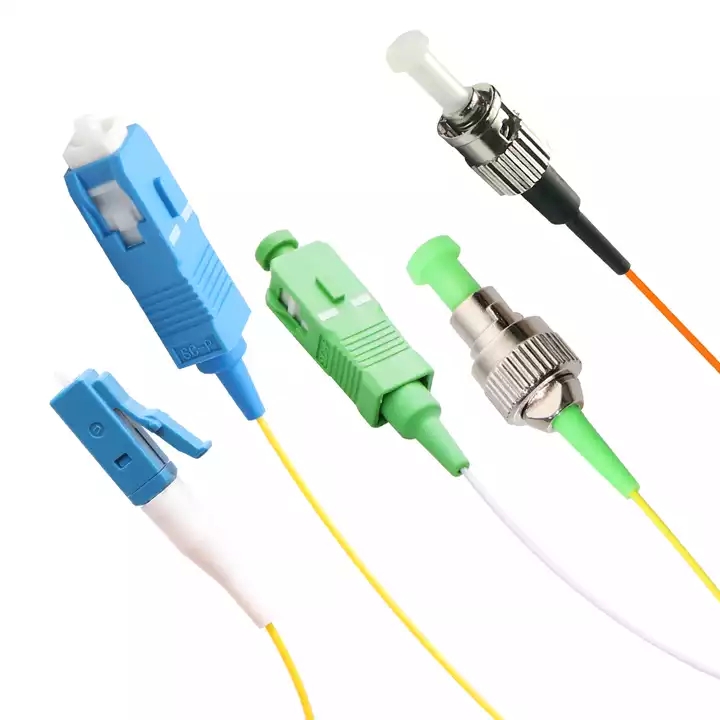

SC, LC, FC, MU, ST, MT-RJ, E2000 connector available.
Superior qualified standard PC, APC, UPC, SPC polishing.
φ0.9mm, φ2.0mm, φ3.0mm cable optional.
Single mode (9/125) or multi mode (50/125 or 62.5/125) fiber available

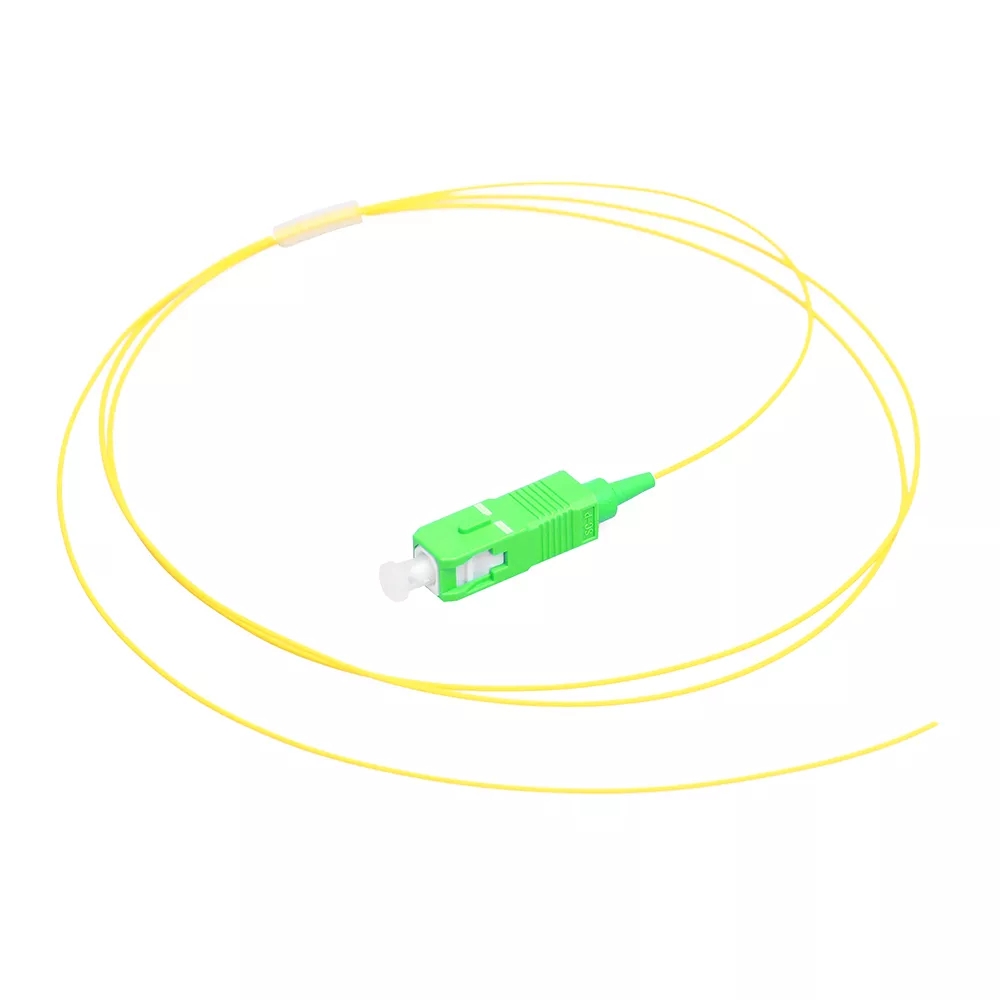

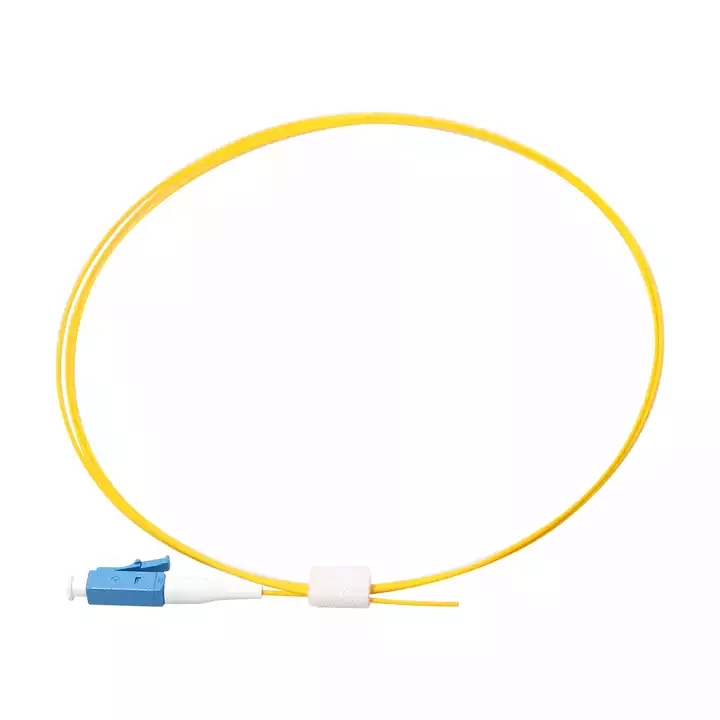

Available in fiber bunch, ribbon fan-out, pigtail available.
Simplex and duplex connector available
Low IL and High RL
Good exchange ability and good durability
Customized specifications are welcomed
Specifications
Item | SM(Single mode) | MM(Multi mode) | |||
Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | OM2/OM3/OM4 | ||
Fiber Diameter(um) | 9/125 | 62.5/125 | 50/125 | ||
Cable OD(mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
End-face Type | PC | UPC | APC | UPC | UPC |
Typical Insertion Loss(dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
Return Loss(dB) | >45 | >50 | >60 | / | |
Insert-pull Test(dB) | <0.2 | <0.3 | <0.15 | ||
Interchangeability(dB) | <0.1 | <0.15 | <0.1 | ||
Anti-tensile Force(N) | >70 | ||||
Temperature Range(℃) | -40~+80 | ||||
