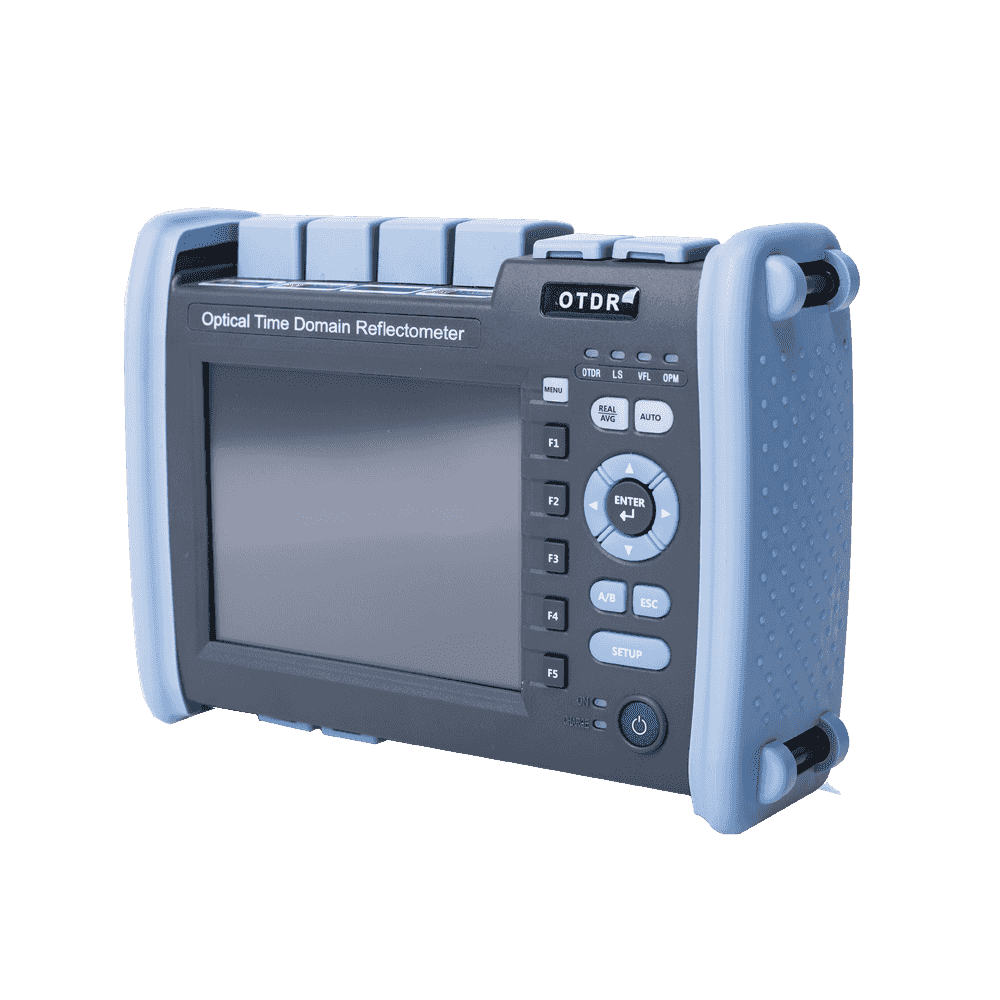

Features
Less than 0.8m short-term event dead zone, test fiber jumper easily.

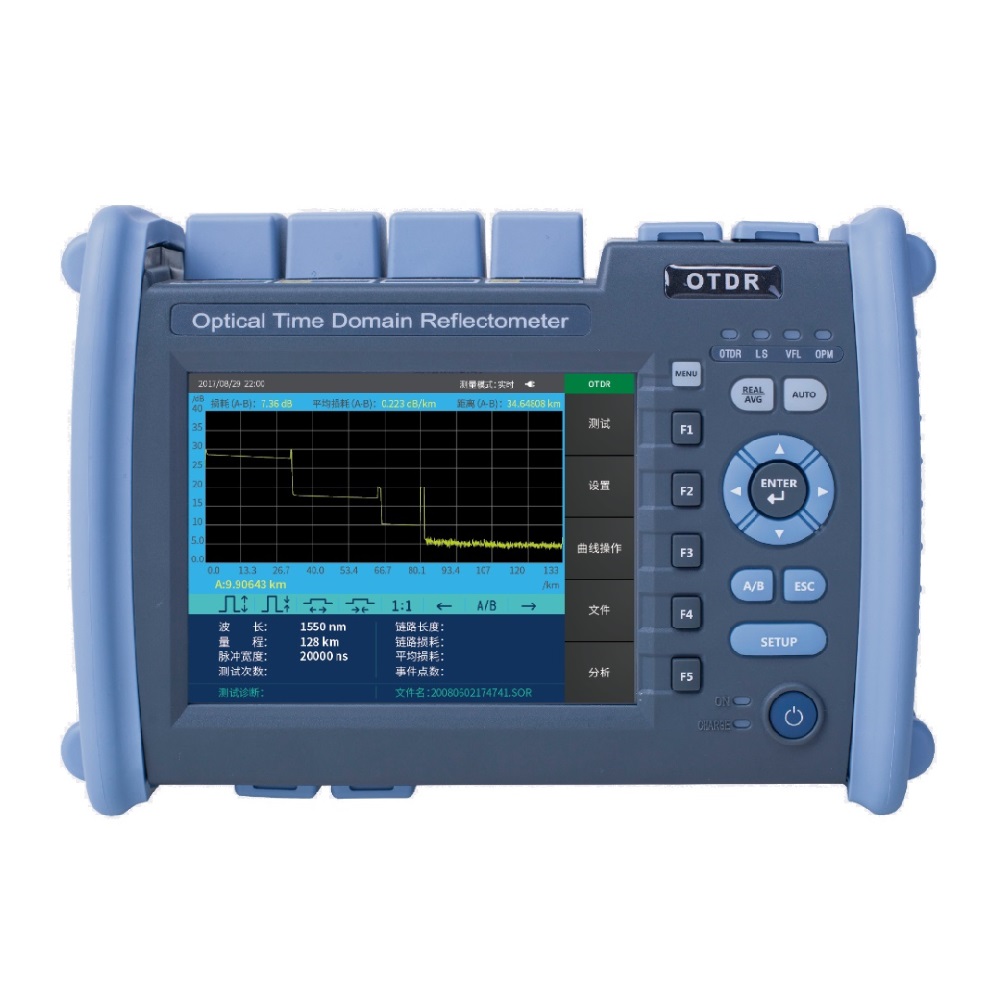

Integrated 5.6-inch color TFT LCD display, key/touch dual operation.
Dynamic range: 35/33dB, up to 45dB
Built-in stable light source function 1310/1550nm;
Built-in optical power meter test function;
Built-in visible red fault location (VFL)
Built-in optical loss test (optional)
Built-in fiber optic connector end face detection; USB probe support (optional)
Optical Eye (Optical Link Intelligent Analysis MAP View) (Optional)
Visual Fault locator (optional)
Has a unique test result self-diagnosis function;
Independent and convenient one-button automatic operation mode, real-time test function keys;
Multi-wavelength synchronization test function;
With multiple waveform viewing capabilities;
Link-band non-destructive testing (online test module);
With Ethernet remote control function;
Communication light automatic monitoring function;
With test file wireless transmission function;
Battery low voltage alarm function;
WinCE Windows operating system, Chinese operating interface; optional for other languages
Specifications
Model | S1 | S2 | S3 | S4 | T1 | T2 | M1 | SM1 | SM2 |
Fiber type | SM | MM | SM&MM | ||||||
Wavelength(nm) | 1310/1550 | 1310/1490/1550 | 850/1300 | 850/1300/1310/1550 | |||||
Dynamic range(dB) | 35/33 | 38/36 | 42/40 | 45/43 | 32/30/30 | 37/35/35 | 26/28 | 26/28/35/33 | 26/28/37/35 |
Event deadzone(m) | 1 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 |
Attenuation dead zone(m) | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Display | 5.6 inch color LCD with touch screen. Size: 227 mm *160 mm *70mm | ||||||||
Test range | 500m /l km /2 km /4 km /8 km /16 km /32 km /64 km /128 km /256km | ||||||||
Pulse width | 5ns/ 10ns/ 5Ons/ 160ns/ 320ns/ 500ns/1000ns/ 5000ns/ 1000ns/ 2000ns | ||||||||
Ranging accuracy | ± (0.75m+ Sampling interval +0.005% x Test distance) | ||||||||
Loss accuracy | ± 0.05dB/dB | ||||||||
Sample points | 16k-256k | ||||||||
Sample resolution | 0.05m-16m | ||||||||
Reflection accuracy | ± 3dB | ||||||||
File format | SOR standard file format | ||||||||
Loss analysis | 4-point method/5-point method | ||||||||
Laser safety level | Class II | ||||||||
Refresh rate | 3Hz(Typ.) | ||||||||
Data storage | Internal storage: ≤3000 curves, External storage: 4G bit | ||||||||

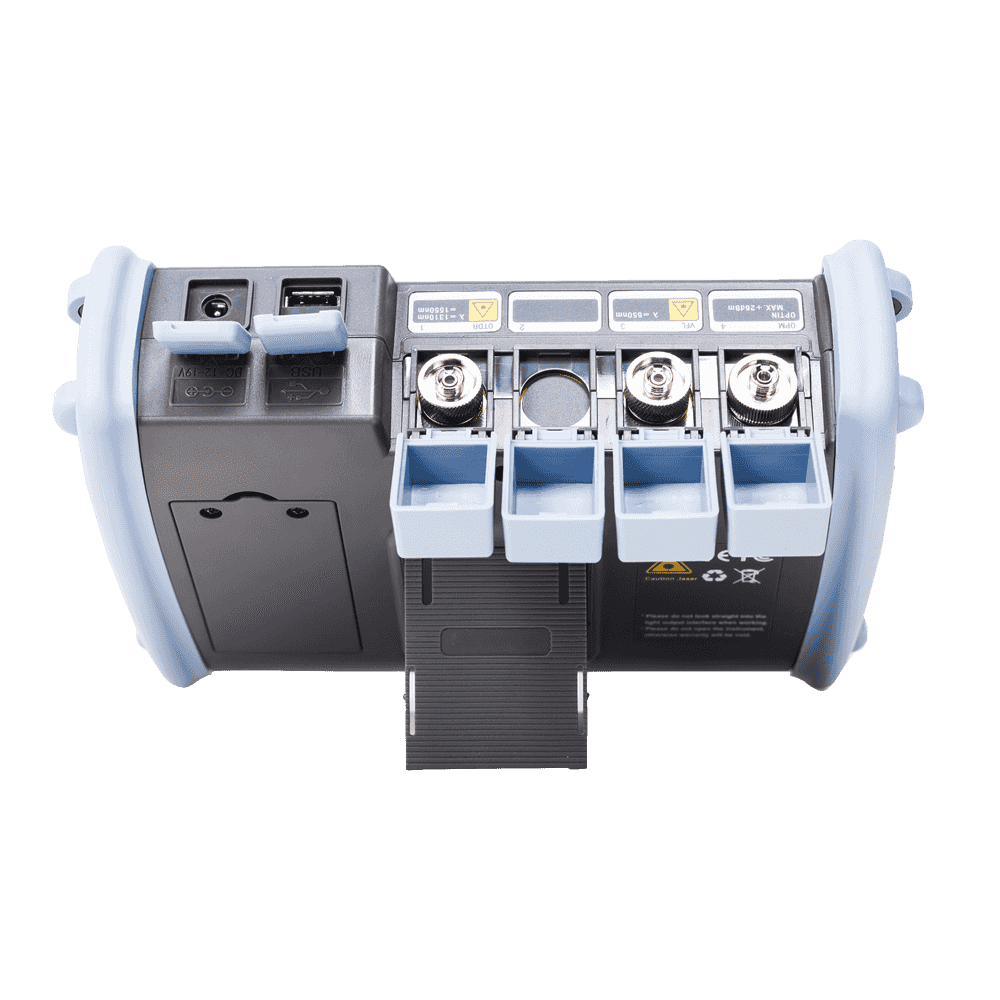

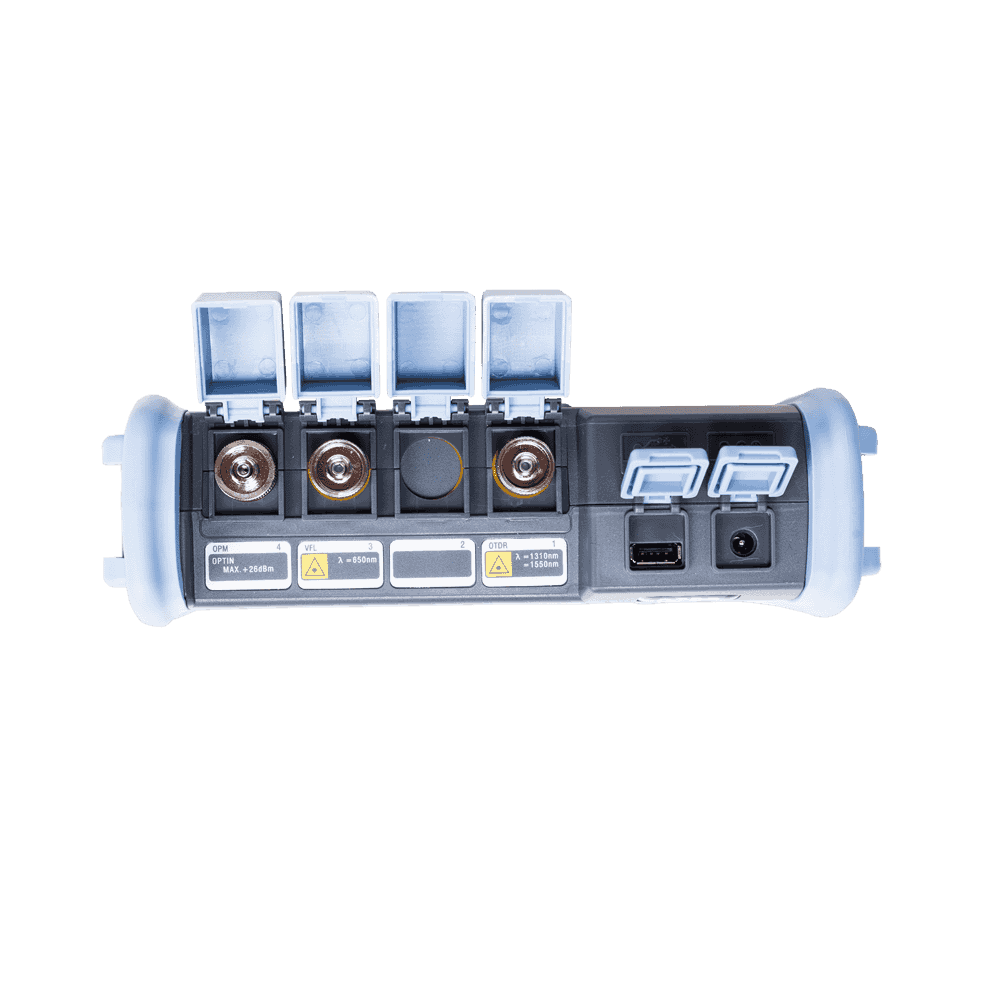

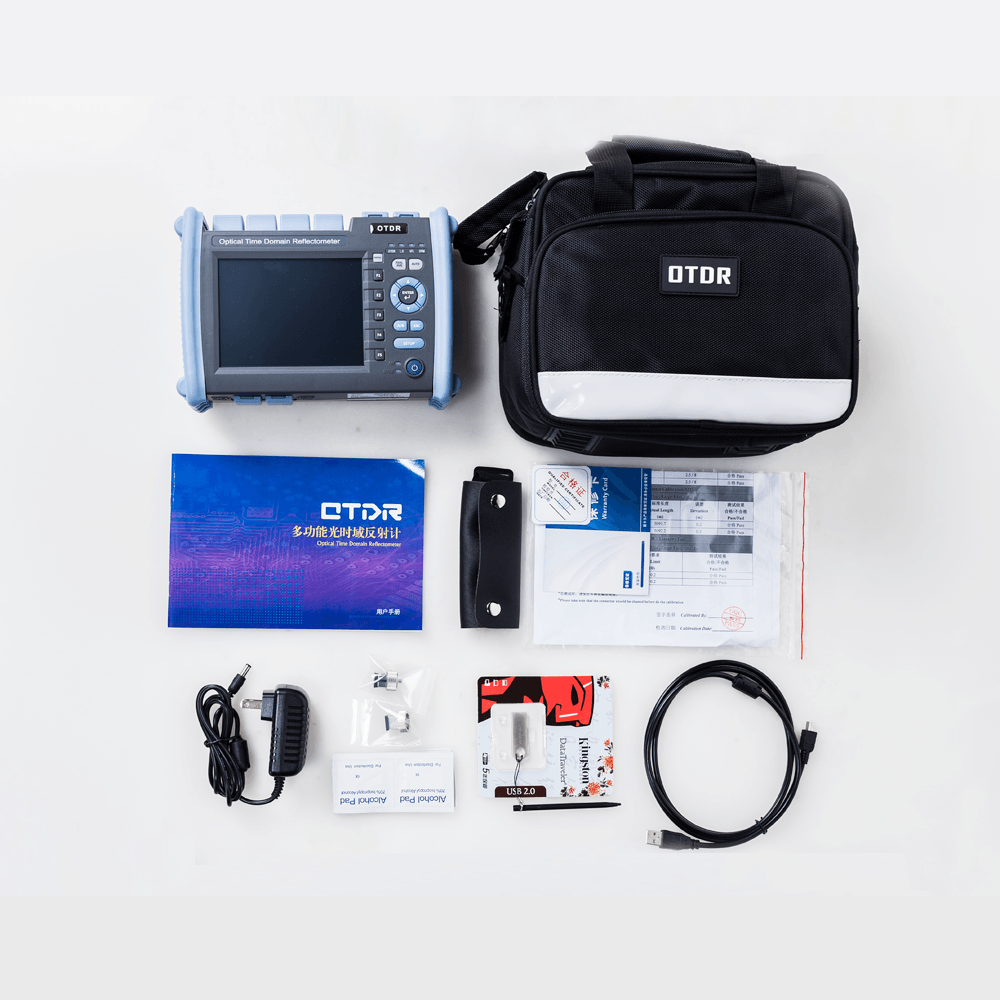

Connector | FC/UPC(interchangeable SC, ST) | ||||||||
Data interface | USB, mini-USB, 10M/100M Ethernet port | ||||||||
OPM | |||||||||
Wavelength range | 800nm-1700nm | ||||||||
Connector | Universal FC/SC/ST | ||||||||
Test scope | -50dBm- +26dBm | ||||||||
Uncertainty | ±5% | ||||||||
Calibration wavelength | 850nm/980nm/1300nm/1310nm/1490nm/1550nm/1625nm/1650nm | ||||||||
LS | |||||||||
Wavelength | Consistent with OTDR output wavelength | ||||||||
Output power | ≥-5dBm | ||||||||
Stability | CW, ±0.5dB/15min(test after 15 minutes of preheating) | ||||||||
Connector | FC/UPC(interchangeable SC, ST) | ||||||||
VFL | |||||||||
Wavelength | 650nm±20nm | ||||||||
Output power | ≥10mw | ||||||||
Mode | CW/1Hz/2Hz | ||||||||
Connector | FC/UPC(interchangeable SC, ST) | ||||||||
The optical loss test index refers to above light source and optical power meter index | |||||||||
Others | |||||||||
Display | 5.6 inch color LCD+touch screen | ||||||||
Power supply | AC/DC adapter: input: 100V-240V, 50/60 Hz, 0.6A, output: 12V-19V, 1.5A, lithium battery: 7.4V, 5200mAh | ||||||||
Working temperature | -10℃- +50℃ | ||||||||
Storage temperature | -40℃- +70℃ | ||||||||
Relative humidity | 0-95%, non-condensing | ||||||||
Weight | ≤1.2kg | ||||||||
Size | 227mm x 160mm x 70mm | ||||||||
Functions of host: OTDR/OPM/VFL/LS/event map/fiber end detection(additional purchase detector)/optical loss test | |||||||||
