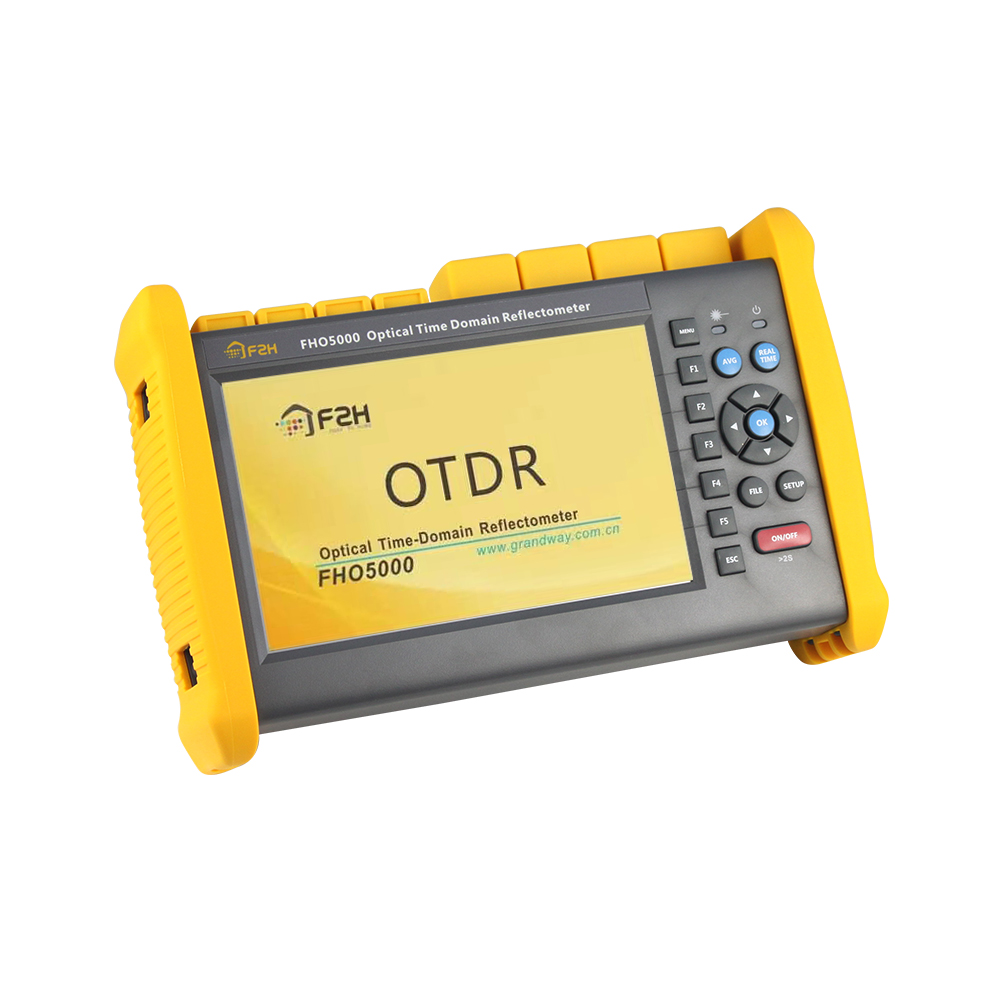

FHO5000 series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; FHO5000 is specially designed for that kind of application. It’s economic, having outstanding performance.

FHO5000 is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes FHO5000 more smart and compact and multi-purpose.

Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, FHO5000 can be your best assistant.

Ready for all kinds of environment

FHO5000 series OTDR is specially designed for tough outdoor jobs. IP65 protection level, lightweight, easy operation, low-reflection LCD and more than 12 hours working period make it perfect in field testing. Meanwhile, optional PCB board with water-proof coating helps FHO5000 series OTDR get better protection performance.

What you need is all-in-one

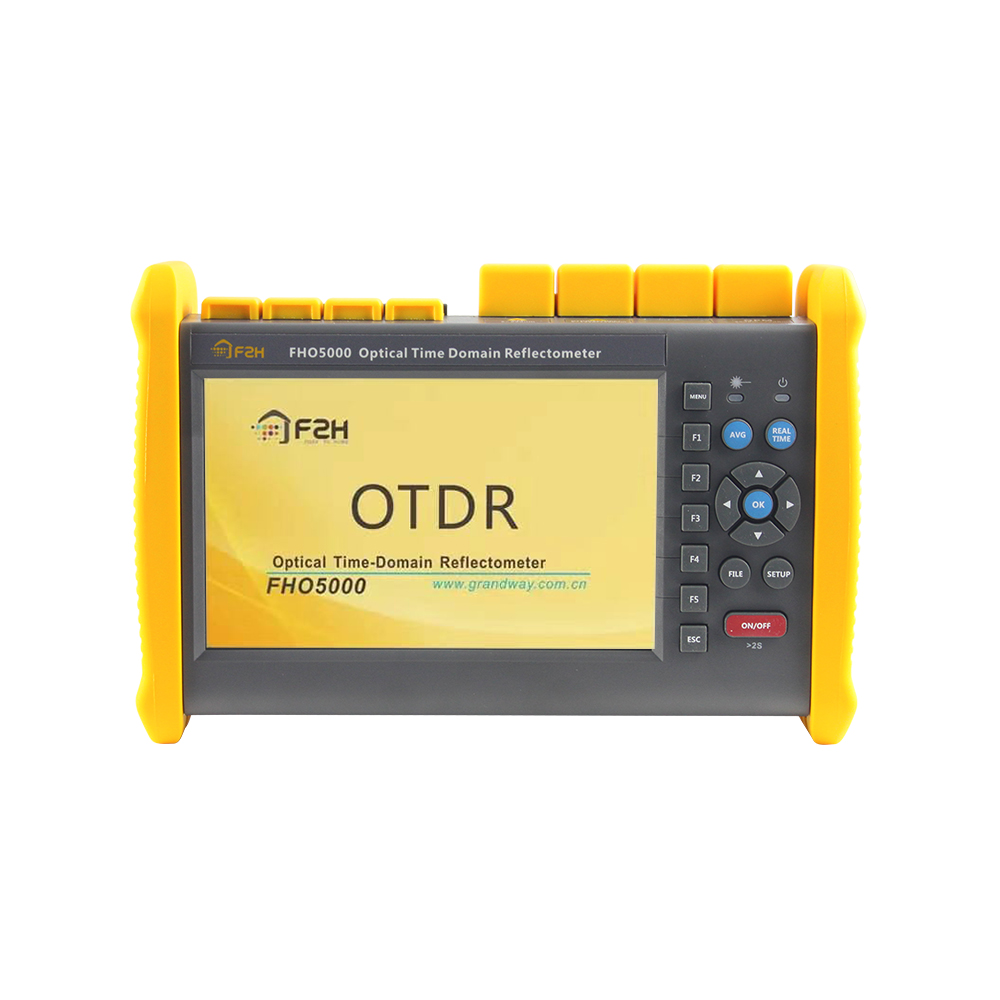

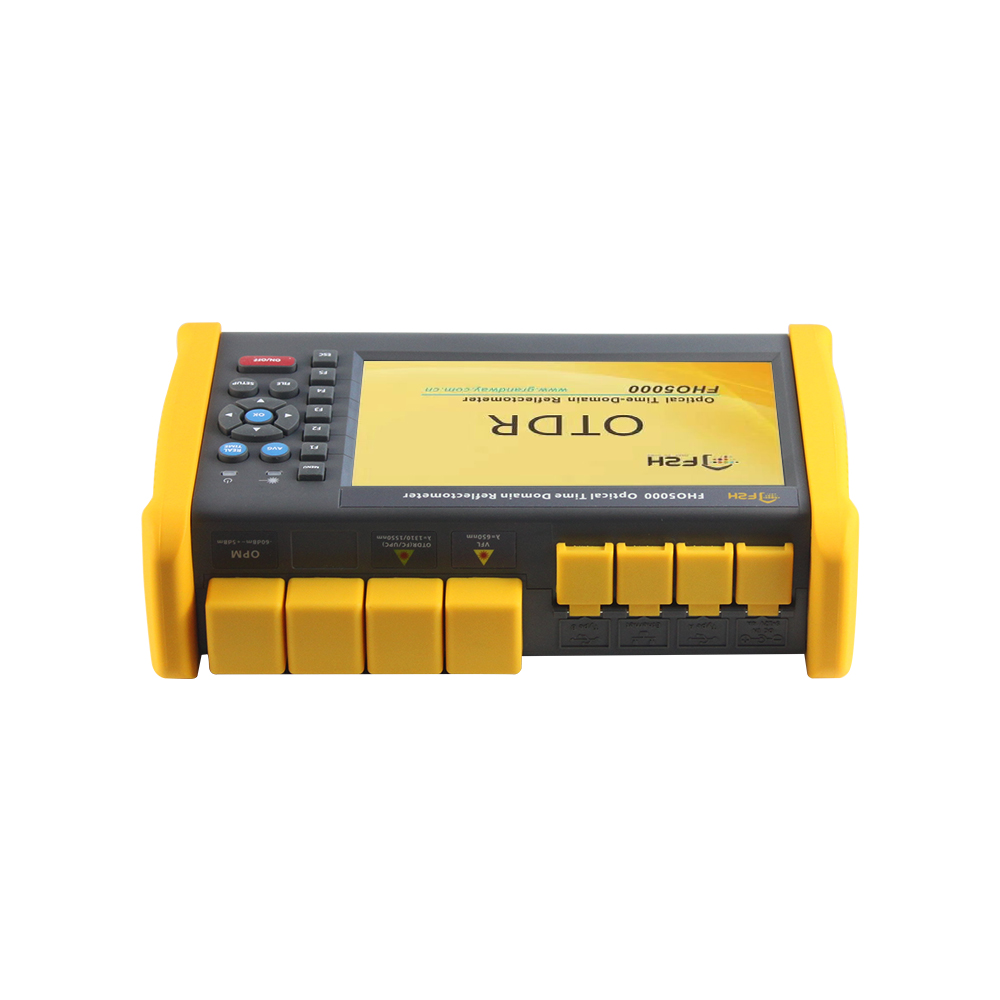

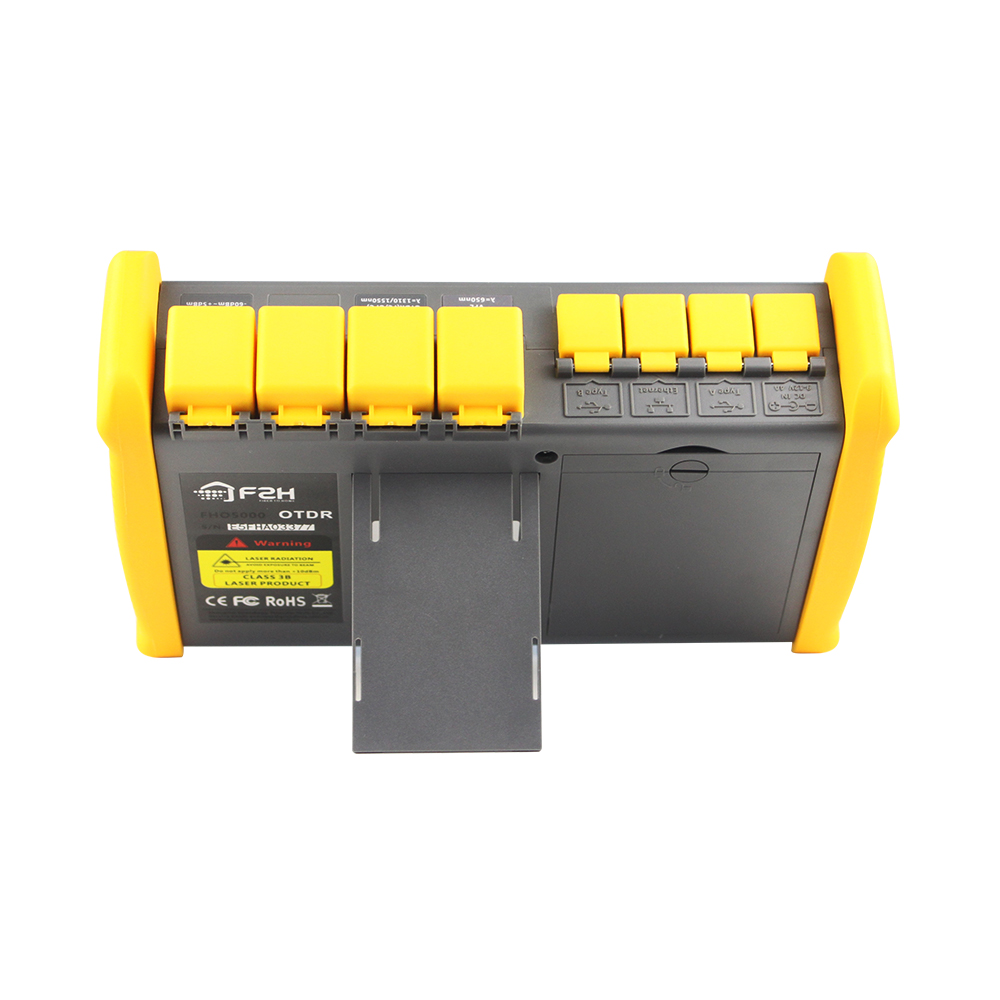

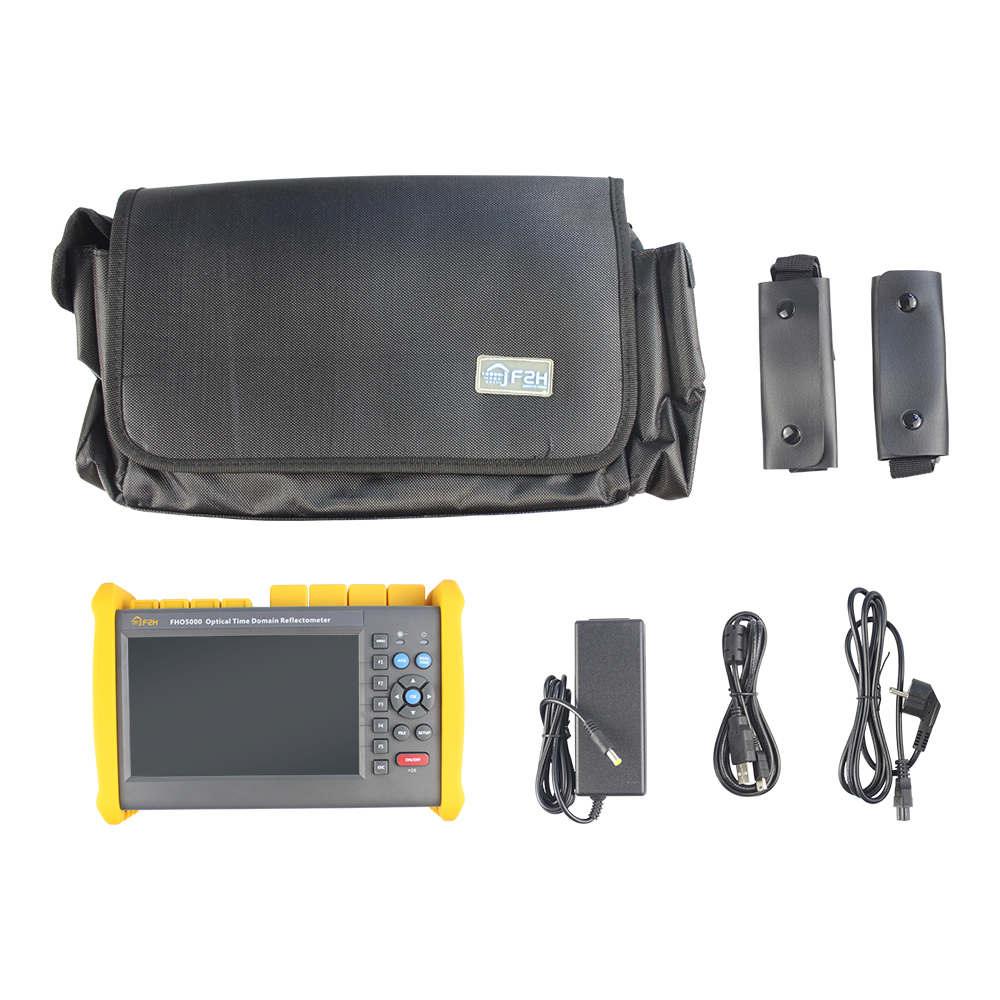

FHO5000 series OTDR is a highly integrated platform that features with four module slots, with a large 7-inch color screen (with a touchscreen option), a high-capacity Lithium-Ion battery, an optional microscope (through universal serial bus [USB] port), and built-in optical test functions, such as PON test module, visual fault locator (VFL), optional power meter and laser source, making it qualified in the installation, turn-up, and maintenance of FTTx/Access optical networks.

Main Functions

Multi-mode OTDR

Besides standard single mode (1310/1550nm), FHO5000 series OTDR supports multi-mode (850/1300m) test mode for option to analyze multi-mode fiber network.

VFL (visual fault locator)

The VFL, available as a standard module in FHO5000 series OTDR, offers built-in 650nm visual fault location on a FC/UPC connector.

PON ONLINE TEST

FHO5000 series OTDR uses 1625nm wavelength to scan and analyze the access point and proceed online testing with optical filter, and will not disturb the service.

OPM (optical power meter)

FHO5000 series OTDR comes with optional built-in power meter that let technicians easily verify the presence of a signal.

LS (laser source)

FHO5000 series OTDR comes with optional built-in laser source through OTDR1 Port that let technicians easily verify the total loss of the local network with a power meter.

FM (fiber microscope)

The optional fiber inspection probe facilitates the inspection before the connection. FHO5000 series OTDR offers this capability through a USB port connection, which allows quick and easy inspection of connector end faces for contamination and also enables it capture and store the image.

Humanized Test Interface

FHO5000 series OTDR could display Splice loss, Connector loss, Fiber attenuation, Reflection of points, Link opitcal return loss and distance to fiber events etc. With test information in a smart way, user could get detailed information immediately.

Quick fit in short time

Simplified display style and structured menus help effective in reducing the time of study.

FTTH test within PON networks

FHO5000 series OTDR’s models, like T40F and T43F, are dedicated to the testing of PON network maintenance and troubleshooting without service disruption.

Last mile master

FHO5000 series OTDR could easily test through 1*32 PLC splitter in PON test (Model: FHO5000-T43F).

Fiber Microscope

Microscope is optional for FHO5000 series OTDR. 400X amplification and variety of accessories ensure perfect terminal condition before test.

The essential first step

Taking time to properly inspect connector end faces can prevent a slew of problems down the lines, saving you time, money and headaches.

Result transfer

Check test results on PC or PDA through USB; 4GB large internal memory space could store more than 40,000 groups of results.

Link in line

u Download reference traces and settings from database

u Send measurement results via email

u Ask for remote help

Data Manager

Use Data Manager to elaborate and print out result files on upper computer within a few steps.

High Compatibility

u Support:

Windows Vista (32/64 bit system)

Windows 7 (32/64 bit system)

Windows 8 (32/64 bit system)

Microsoft Office Excel 2007

Microsoft Office Excel 2010

Microsoft Office Excel 2013

Specifications

Technical Parameter

Test Parameter

VFL Module (Visual Fault Locator, as standard function)

PM Module (Power Meter, as optional function)

LS Module (Laser Source, as optional function)

FM Module (Fiber Microscope, as optional function)

Notes:

①Typical, backlight off, sweeping halted at 25℃, 12 hours typical continuous testing.

② Model T40F/T43F/T45F are integrated with optical filter, which allow them to test PON network online (by using 1625nm wavelength) and will not interrupt the fiber signal.

③Dynamic range is measured with maximum pulse width, averaging time is 3 minutes, SNR=1; The level difference between the RMS noise level and the level where near end back-scattering occurs.

④Event dead zone is measured with pulse width of 3ns; attenuation dead zone is measured with pulse width of 5ns.

⑤1310/1550nm laser source uses OTDR1 port, and 1625nm or 850/1300nm uses OTDR2 port.

⑥For more adapters, please contact us.
