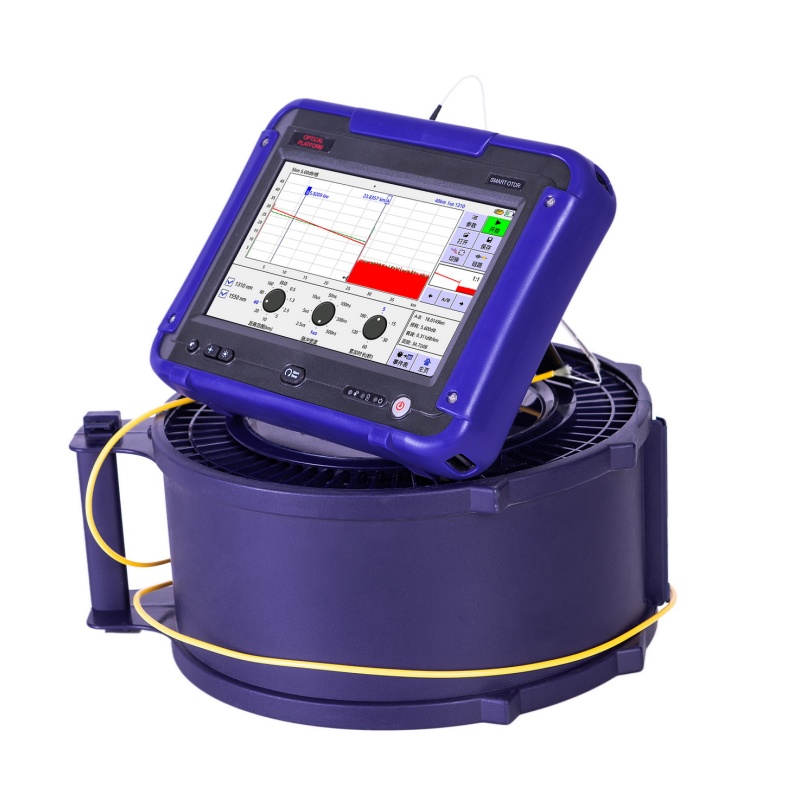

2024 New Model FTTH Fiber Tester PON OTDR FFS3700

FFS3700 series optical fiber comprehensive tester integrates the functions of optical time domain reflectometer, optical power meter, light source and visual fault locator. It is able to test the performance characteristics of physical layer of optical fiber. OTDR has excellent dead zone and top dynamic range. We have multiple models to meet your specific OTDR testing needs. By combining with VFL, the product can ensure full fault detection of optical fiber.

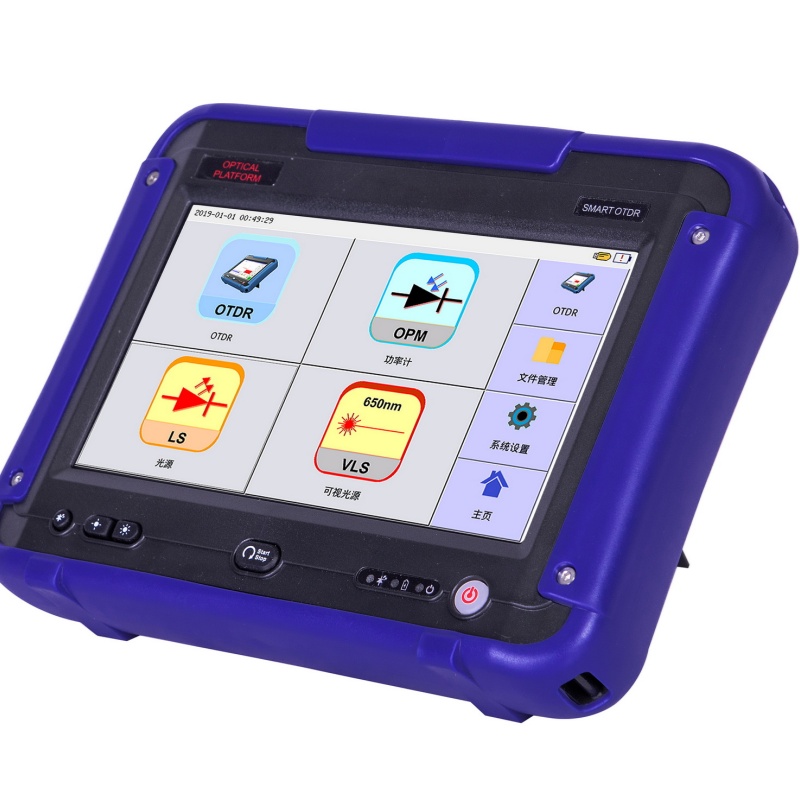

FFS3700 series is an OTDR designed by referring to the operating mode of tablet PC and smartphone. It has simple operation interface and can be perfectly combined with 7-inch capacitive touch screen. It will give you totally different usage experience without special training. As a compact, light, power and durable product, it is easy to use and is more suitable for use outdoors.

Product description

Features

Multiple dynamic ranges of OTDR for you to choose

Multiple dynamic ranges with the max one reaching up to 45dB

The top dead zone index with the min zone of 1m detected

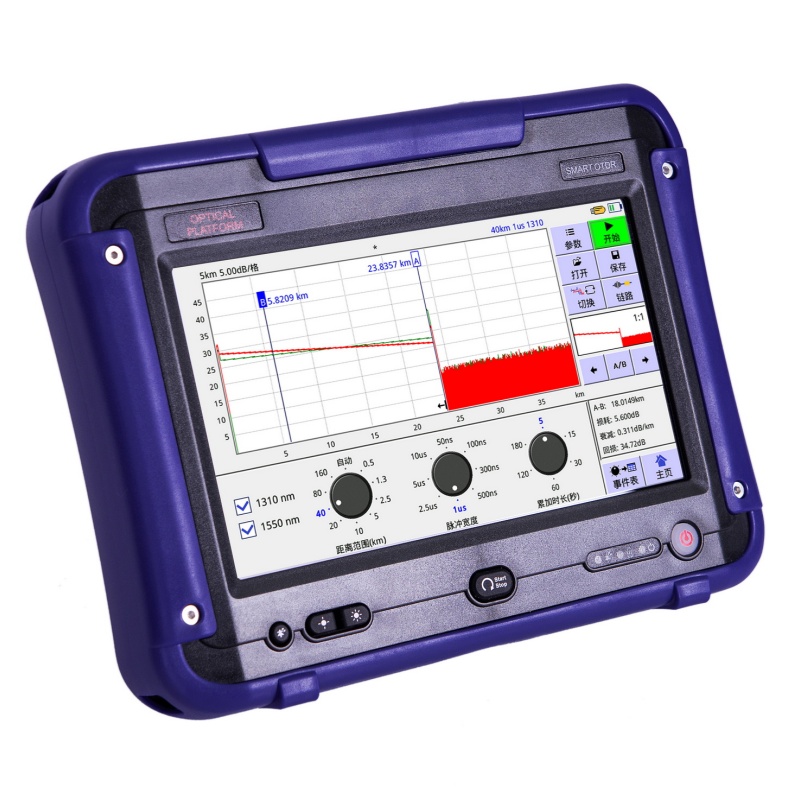

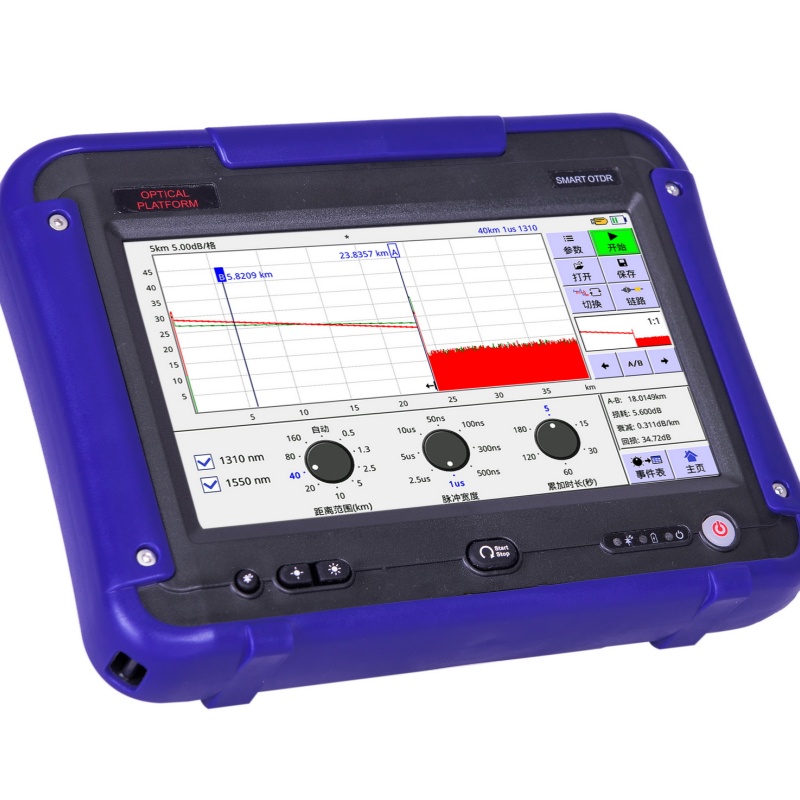

The 7-inch outdoor enhanced capacitive touch screen has a simple and user-friendly operation interface which supports intelligent one-touch operation. Turn on and test. You can zoom in and zoom out the test trace by means of gesture.

OTDR optimized model test:

-For network connection: high-speed test

-For network maintenance: accurate test

Intelligent link analysis function: Automatically analyze the internal conditions of optical fiber, automatically identify the connection of optical fiber splice tested, automatically identify the optical welding point, automatically identify the flange plate, automatically identify the optical macro bend, and provides the loss, distance and other conditions of welding point, flange plate and macro bend.

OTDR has dual-wavelength test function, macro bend detection function selection and macro bend detection threshold setting and allows you to intuitively observe the macro bend point of cable.

Multiple test modes: average mode, real time mode, real time to average mode, and average + real time mode.

“Pass/fail threshold” setting. The device can automatically judge if the event meets requirements.

Comparison of different test traces: up to 5 test curves can be viewed on the instrument for comparison at the same time.

OTDR supports the multi-language interface.

Easy file operation

Support multiple file formats such as soar, pdf and jpg; auto file naming and Android-style filename input interface allow you to save files easily; the plug-in USB achieves accessible file transfer.

OTDR has the line light alarm function, which can protect the optical device to the greatest extent and the optical module self-detection function to automatically detect the performance states of optical module.

The USB folder creation function ensures different cables are stored according to different categories.

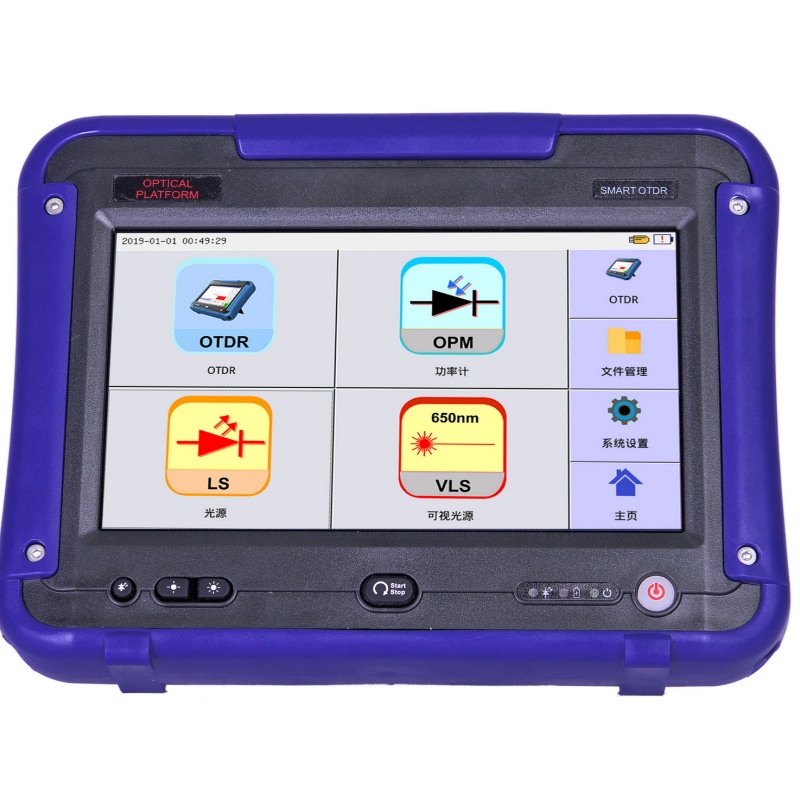

Support the functions of VFL, OPM and light source.

The large-capacity lithium battery has functions of over current protection, over-temperature protection and over voltage protection. The working time of battery is more than 10 hours.

The external power supply interface has high-voltage input protection function to prevent damage to the instrument due to high voltage input.

Ultra-large capacity internal storage. Expand the external storage by connecting the U disk’ via the USB interface.

Remote upgrade through instrument software.

Specifications(SMF)

Module	S24	S32	S35	S37		S40		S45
OTDR
Central wavelength(±20nm)	1310/1550	1310/1550	1310/1550	1310/1550		1310/1550		1310/1550
Dynamic range(dB)	24/22	32/30	35/33	37/35		40/38		45/43
Pulse width	5ns, 10ns, 20ns, 50ns, 100ns, 300ns, 1.0ms, 2.5ms, 10ms, 20ms
Event dead zone (m)	2	1.5				0.8
Attenuation dead zone(m)	10	5.5				4.5
Distance range(km)	0.5 to 160	0.5 to 240
Optical fiber type	SMF
Distance uncertainty	± (1 + 0.005 % x distance + sampling resolution)
Loss measurement accuracy	±0.05dB/ dB
Memory capacity	10,000 curves
LCD size	7-inch capacitive touch screen
Standard optical interface	FC/SC/ST/LC optional
VFL			Light source (optional)
Wavelength	650nm±20		Wavelength (nm)				1310/1550
Output power	<1dBm		Output power (dBm)				≥-7
Standard connector	FC/UPC
OPM(optional)
Model	A				B
Detector type	InGaAs
Detection range(dBm)	-60-+16				-50-+26
Calibration wavelength(nm)	850, 980, 1300, 1310, 1490, 1550, 1625
Linearity	±5%
Flange plate type	FC, SC, LC, ST (optional)
Others
Battery	Lithium battery		Continuous working hours				>10 hours
Dimension	210×160×45mm		Weight				1kg

Specifications(MMF, SMF&MMF)

Module	M22	MS22		SM32		SM35
OTDR
Central wavelength(±20nm)	850/1300	850/1310/1550		850/1300/1310/1550		850/1300/1310/1550
Dynamic range (dB)	22/20	22/32/30		22/20/32/30		22/20/35/33
Pulse width	5ns, 10ns, 20ns, 50ns, 100ns, 300ns, 1.0ms, 2.5ms, 10ms, 20ms
Event dead zone(m)	2	1.5		1.5
Attenuation dead zone(m)	10	5.5		5.5
Distance range (km)	0.1 to 40	0.1 to 240		0.1 to 240
Optical fiber type	MMF	SMF & MMF
Distance uncertainty	± (1 + 0.005 % x distance + sampling resolution)
Loss measurement accuracy	±0.05dB/ dB
Memory capacity	10,000 curves
LCD size	7-inch capacitive touch screen
Standard optical interface	FC/SC/ST/LC optional
Visual fault locator				Light source(optional)
Wavelength	650nm±20			Wavelength(nm)		850/1300/1310/1550
Output power	<1dBm			Output power(dBm)		≥-7
Standard connector	FC/UPC
OPM(optional)
Model	A		B
Detector type	InGaAs
Detection range(dBm)	-60-+16		-50-+26
Calibration wavelength(nm)	850, 980, 1300, 1310, 1490, 1550, 1570, 1625
Linearity	±5%
Flange plate type	FC, SC, LC, ST(optional)
Others
Battery	Lithium battery			Size	210×160×45mm
Continuous working hours	>10 hours			Weight	1kg

Specifications(1310/1550/1625nm)

Module	AB24	AB32		AB37		AB40
OTDR
Central wavelength(±20nm)	1310/1550/1625	1310/1550/1625		1310/1550/1625		1310/1550/1625
Dynamic range(dB)	24/22/22	32/30/30		37/35/32		40/38/38
Pulse width	5ns, 10ns, 20ns, 50ns, 100ns, 300ns, 1.0ms, 2.5ms, 10ms, 20ms
Event dead zone(m)	2	1.5				0.8
Attenuation dead zone(m)	10	5.5				4.5
Distance range(km)	0.5-160	0.5-240
Optical fiber type	SMF
Distance uncertainty	± (1 + 0.005 % x distance + sampling resolution）
Loss measurement accuracy	±0.05dB/ dB
Memory capacity	10,000 curves
LCD size	7-inch capacitive touch screen
Standard optical interface	FC/SC/ST/LC optional
VFL			Light source(optional)
Wavelength	650nm±20		Wavelength(nm)		1310/1550
Output power	<1dBm		Output power (dBm)		≥-7
Standard connector	FC/UPC
OPM(optional)
Model	A			B
Detector type	In GaAs
Detection range(dBm)	-60-+16			-50-+26
Calibration wavelength(nm)	850, 980, 1300, 1310, 1490, 1550, 1625
Linearity	±5%
Flange plate type	FC, SC, LC, ST(optional)
Others
Battery	Lithium battery		Continuous working hours		>10 hours
Dimension	210×160×45mm		Weight		1kg

Specifications(SMF with filter)

Module	F24	F32		F35		F37	F40	F45
OTDR
Central wavelength(±20nm)	1310/1550	1310/1550		1310/1550		1310/1550	1310/1550	1310/1550
Dynamic range(dB)	24/22	32/30		35/33		37/35	40/38	45/43
Pulse width	5ns, 10ns, 20ns, 50ns, 100ns, 300ns, 1.0ms, 2.5ms, 10ms, 20ms
Event dead zone(m)	2	1.5					0.8
Attenuation dead zone(m)	10	5.5					4.5
Distance range(km)	0.5 to 160	0.5 to 240
Distance uncertainty	±（1 + 0.005 % x distance + sampling resolution)
Loss measurement accuracy	±0.05dB/ dB
1310nm overload power	1490nm ≤0dBm 1550nm ≤0dBm 1577nm ≤0dBm		1550nm overload power				1310nm ≤0dBm 1490nm ≤0dBm
Memory capacity	10000 curves
Optical fiber type	SMF
LCD size	7-inch capacitive touch screen
Standard optical interface	FC/SC/ST/LC(optional)
Visual fault locator			Light sources(optional)
Wavelength	650nm±20		Wavelength(nm)				1310/1550
Output power	<1dBm		Output power(dBm)				≥-7
Standard connector	FC/UPC
OPM(optional)
Model	A				B
Detector type	InGaAs
Wavelength(dBm)	-50-+16				-50-+26
Calibration wavelength(nm)	850, 980, 1300, 1310, 1490, 1550, 1625
Linearity	±5%
Flange plate type	FC, SC, LC, ST(Optional)
Others
Battery	Lithium battery		Continuous working hours				>10 hours
Dimension	210×160×45mm		Weight				1kg

Note

① Unless otherwise specified, all specifications are applicable to connectors with FC/PC at 23 °C ± 2 °C (73.4 °F ± 3.8 °F).

② Common configuration.

③ Typical dynamic range of max pulse at SNR = 1 and 3-minute average.

④ Typical dead zone with 10ns pulse and single-mode reflectivity lower than –50dB.

⑤ Typical dead zone with 10ns pulse and single-mode reflectivity lower than –50dB.

⑥ Excluding the uncertainty resulted from optical refractive index.

⑦ The same interface as OTDR.
