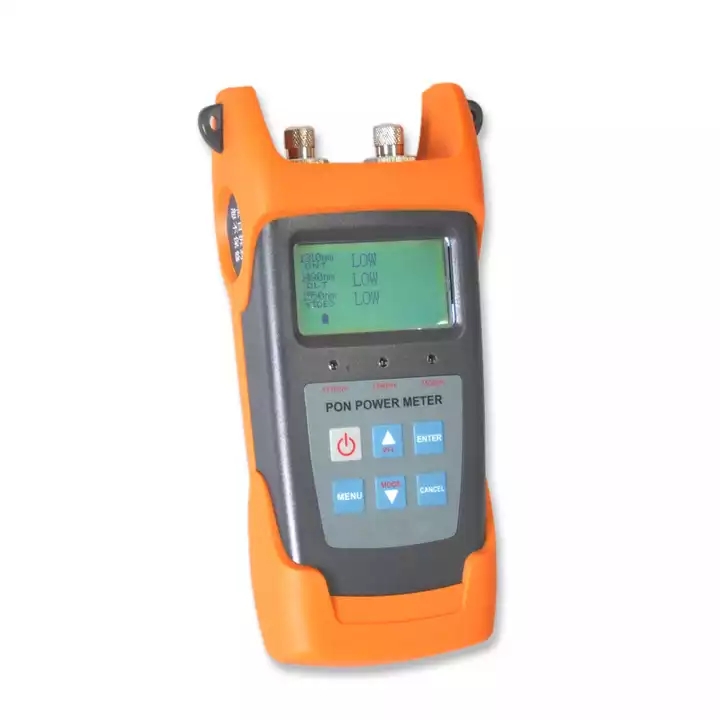

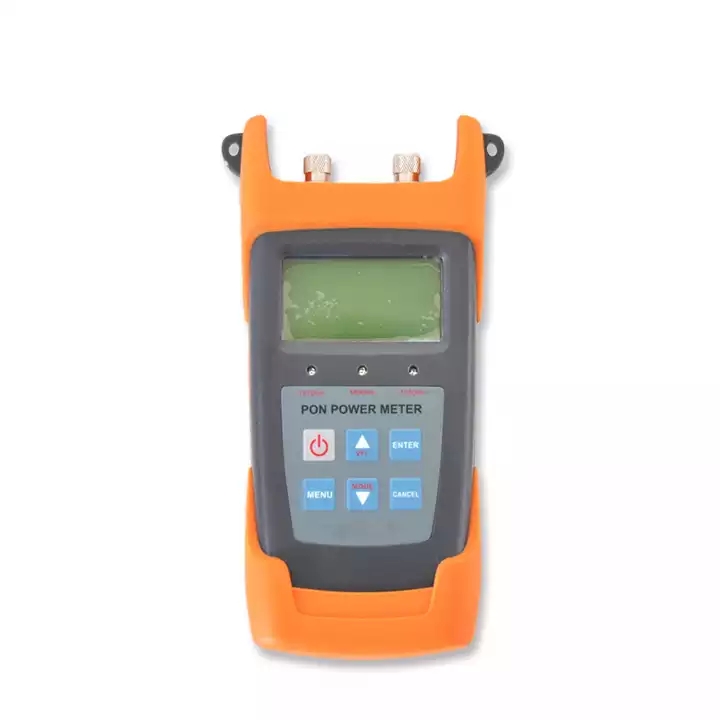

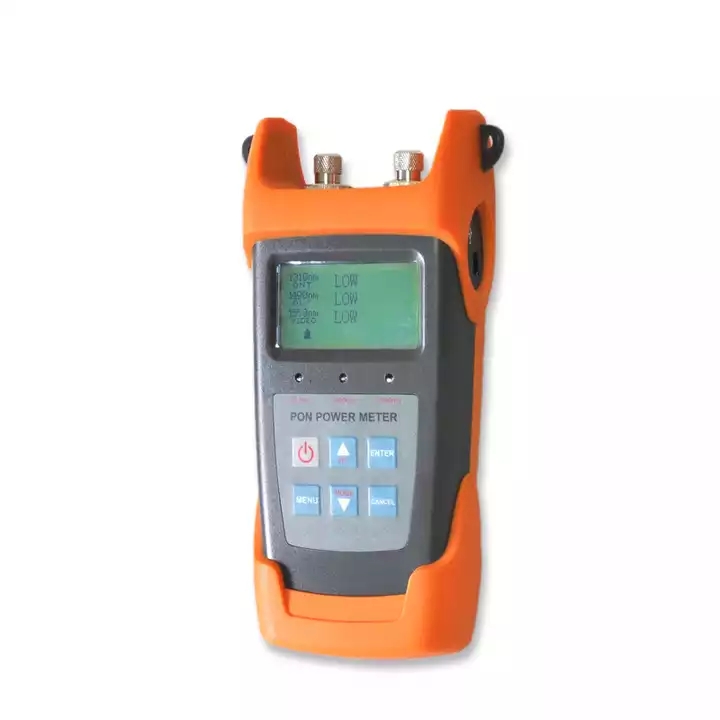

FFS313 targets at the FTTx application and maintenance. This PON power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.
Specifications
Model | FFS313 | ||
Wavelength | 1310nm | 1490nm | 1550nm |
Pass Zone(nm) | 1260～1360 | 1470～1505 | 1535～1570 |
Isolation (dB) | >40@1490 | >30@1310 | >40@1310 |
Isolation(dB) | >40@1550 | >40@1559 | >40@1490 |
Measurement Range(dBm) | -40～+10 | -40～+10 | -40～+20 |
Measurement Accuracy | |||
Connatural uncertainty(dB) | ±0.5 | ||
Linearity(dB) | ±0.1 | ||
Passing through insertion Loss(dB) | <1.5 | ||
General Information | |||
Detector Type | InGaAs | ||

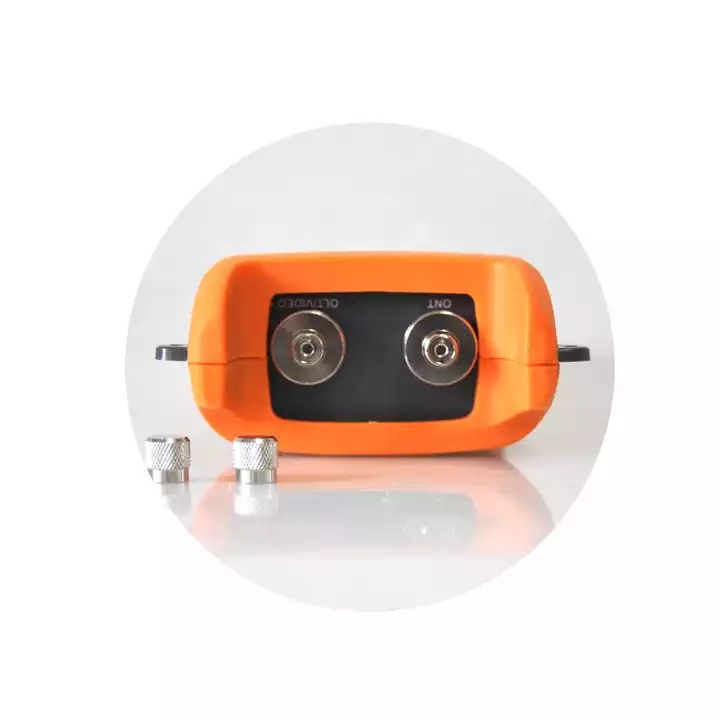

Optical Connector | FC/SC Interchangeable | ||
Fiber Type | 9/125um | ||
Display | LCD:128*64 | ||
Measurement Unit | dB/dBm/xW | ||
Resolution (dB) | 0.01 | ||
Power Supply | 3 AA1.5V battery | ||
Operation Temperature (℃) | -10～60 | ||
Storage temperature (℃) | -25～70 | ||
Dimension(mm) | 200x90x50 | ||
Weight(g) | 285 | ||
