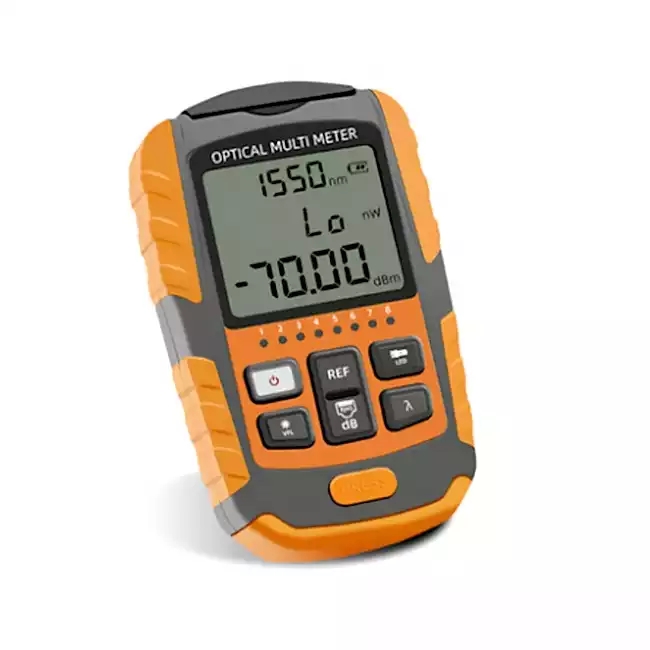

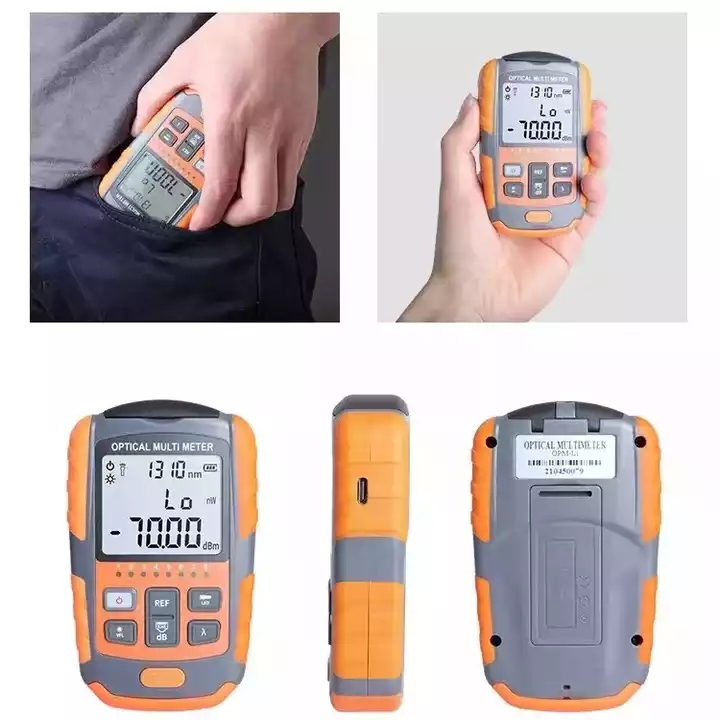

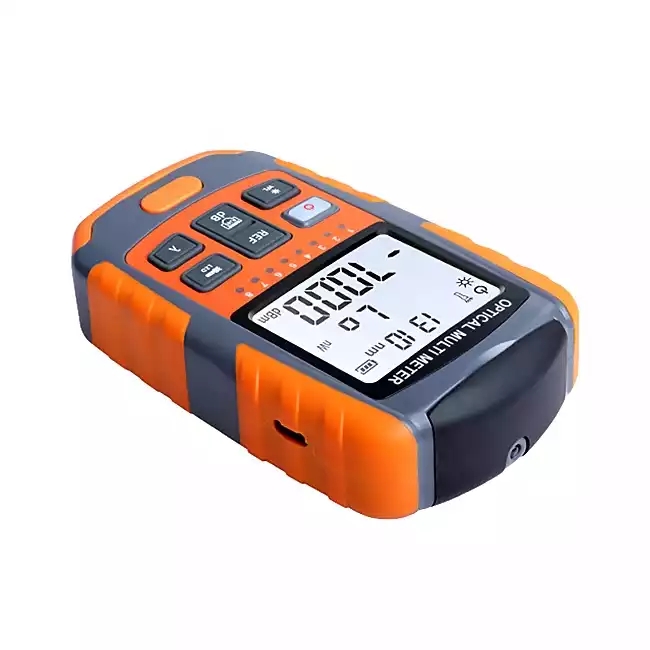

Mini Optical Multimeter FFS260

FFS260 series OPM and VFL all-in-one machine are controlled by single chip microprocessor with complete functions. it can be well protected by using embedded detector and laser. It has 10 standard wavelengths, such as1270nm/1577nm. It also has frequency identification, automatic shutdown function, CW/1Hz/2Hz red light modes wavelength memory, user calibration, and RJ45 network cable sequence and tracking test function.

Product description

FFS260 series mainly used for continuous optical signal continuous modulation optical signal power measurement optical fiber link loss test and optical fiber line on-off test. It is widely used in optical cable construction and maintenance, optical fiber communication, optical cable sensing, Optical CATV and other fields.

Features

Identification of CW/270/330/1k/2kHz modulated frequency light

Support 1270nm,1577nm wavelength test Support user calibration

Support CW/ 1Hz/2Hz three red light modes Support wavelength memory function

Support RJ45 cable sequence,cable tracking Support SC/FC/ST interface

Support backlight display, automatic shutdown Supporting portable battery charging

Specifications

OPM
Wavelength range	800nm~1700nm
Optical connector	Universal joint
Detector type	InGaAs
Power measurement range	-70dBm~+6dBm	-50dBm~+26dBm
Uncertainty	±5%
Calibration wavelength	850/980/1270/1300/1310/1490/1550/1570/1625/1650nm
Display resolution	Linear display: 0.1%, logarithmic display: 0.01dB
Recognizable frequency	CW, 270Hz, 330Hz, 1kHz, 2kHz

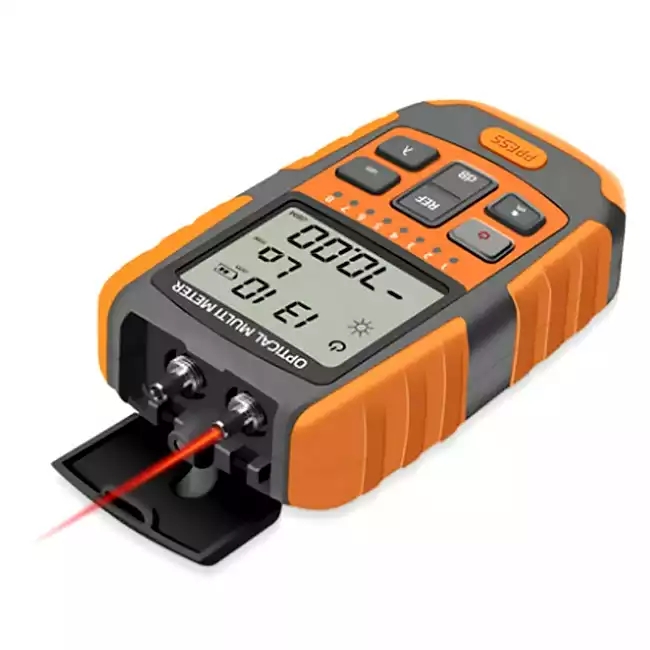

VFL (optional)
Working wavelength	650nm±30nm
Output Power	2mW/10mW/30mW/50mW
Operating mode	CW/1Hz/2Hz
Optical connector	Universal joint
RJ45 cable sequence(standard), cable tracking(optional)
Testing distance	300m
Others
Power supply	2 AAA batteries/Lithium batteries: 3.7V/700mAh (optional)
Interface	Type-C
Battery continuous working time	≥120h（Optical power meter function）
Auto shutdown time	10min
Operating temperature	-10℃-+50℃
Storage temperature	-40℃-+70℃
Relative temperature	0-95％ No condensation
Size	110mmx68mmx27mm
Weight	130g

Ordering Information

FFS260-A-B-C-D
A	B	C	D
Power meter range: 5. -50dBm~+26dBm; 7. -70dBm~+6dBm	Red light power: 0. Not available; 2. 2mW; 10.10mW; 30.30mW; 50. 50mW	Battery: D. dry battery; L. Lithium battery	Cable tracker: 0. Not available; 1. Have
Selection instructions: the range of the power meter is required, and the others are optional
