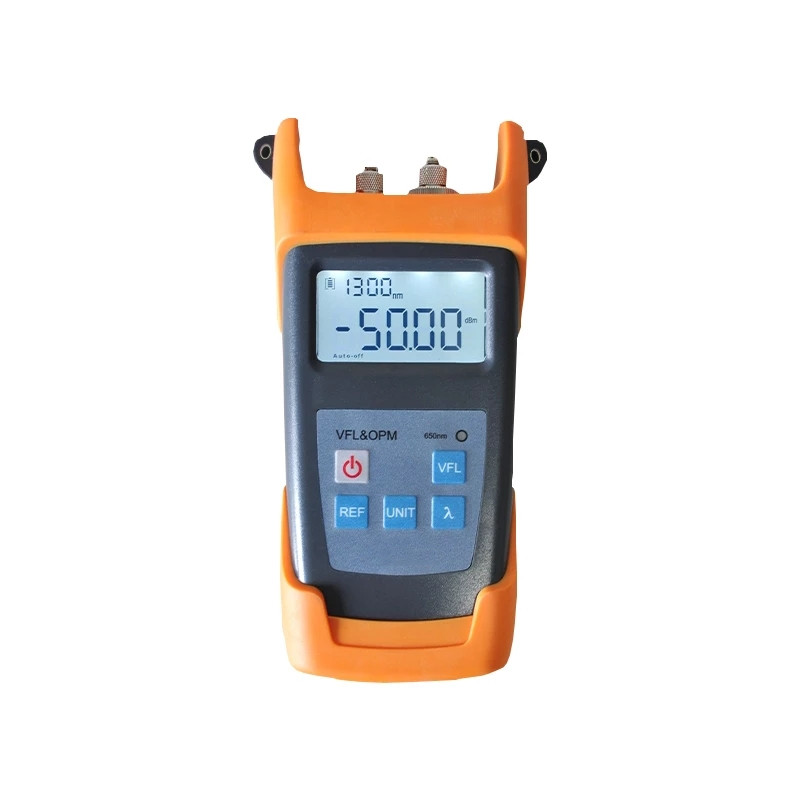

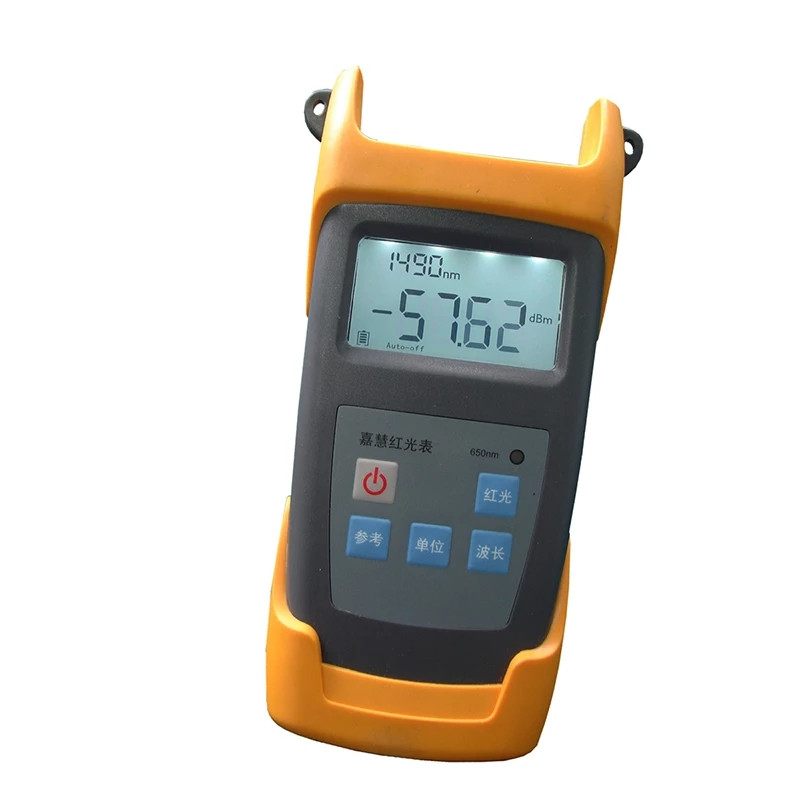

FFS323 power meter and VFL is an ideal tester used in quickly mechanical splicing and FTTx networks.
Optical port: FC, SC interchangeable supports various optical connectors.
Applications
Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements
Specifications
Model | FFS323 |
Operating wavelength (Power Meter Module) | 850/1300/1310/1490/1550/1625 |
Detector Type | InGaAs |
Output power (VFL module) | 1mw or 10mw |
Power Measurement Range | -70~+6dBm/-50~+26dBm |
Uncertainty | ±0.5dB |
Resolution | 0.01 |
Operation temperature | -10~+60 ℃ |
Storage Temperature | -25~+70℃ |
Auto-off function | Yes, Auto-off after 10minutes idle time |
Battery Life @ OPM | 180 hours |
Battery Life @ VFL | 60 hours |

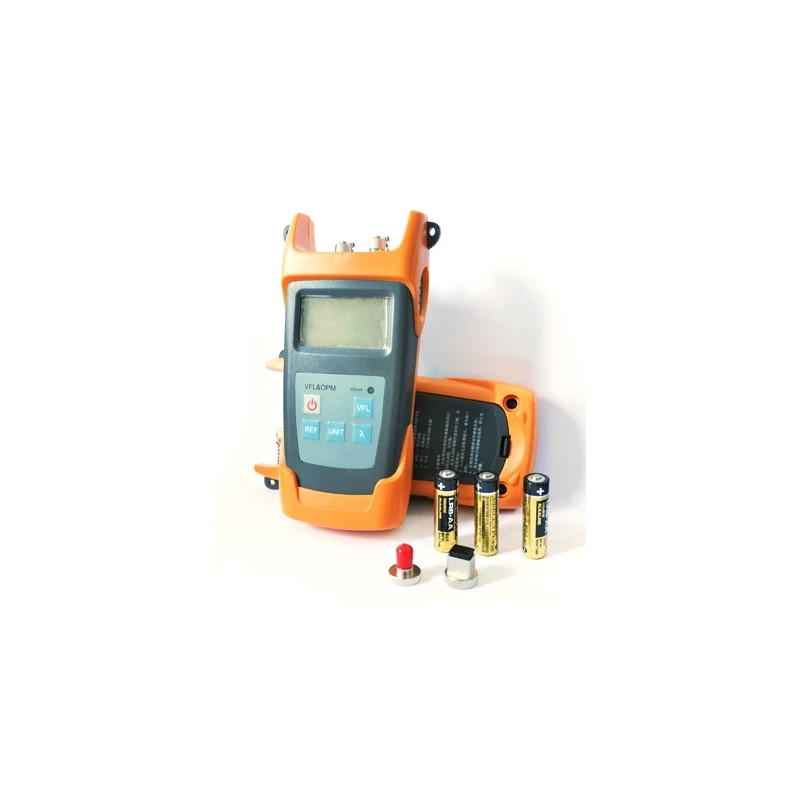

Power Supply | 3pcs AA Batteries |
Weight | 700g (including batteries) |
Size | 192*102*50mm |
