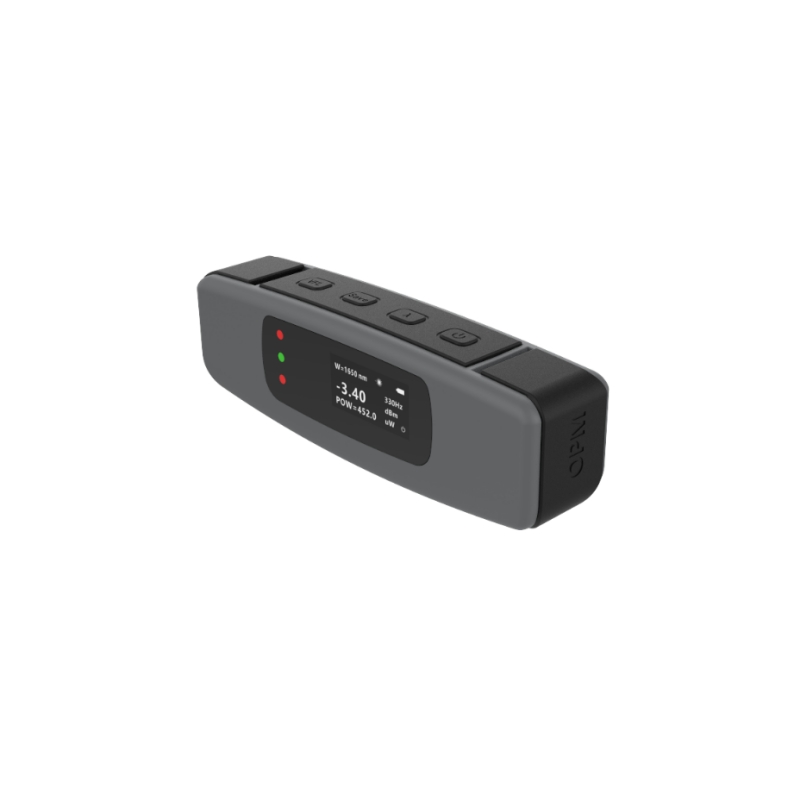

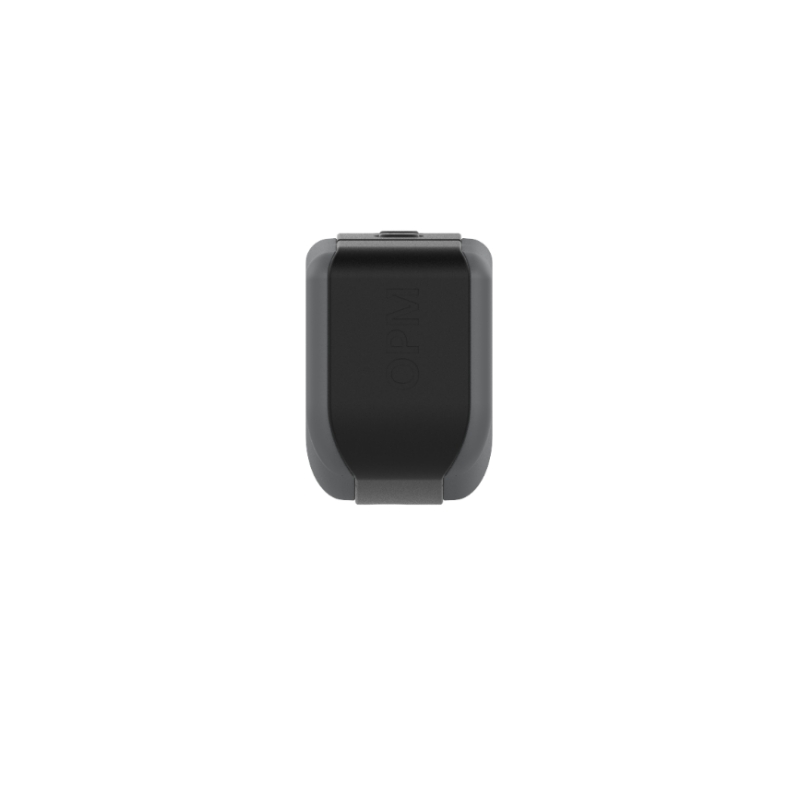

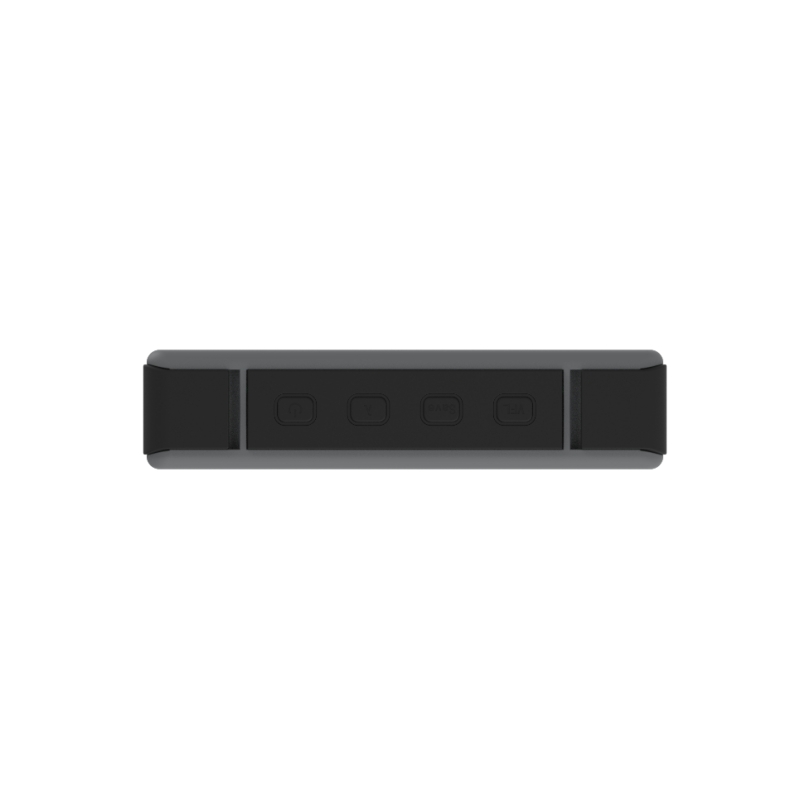

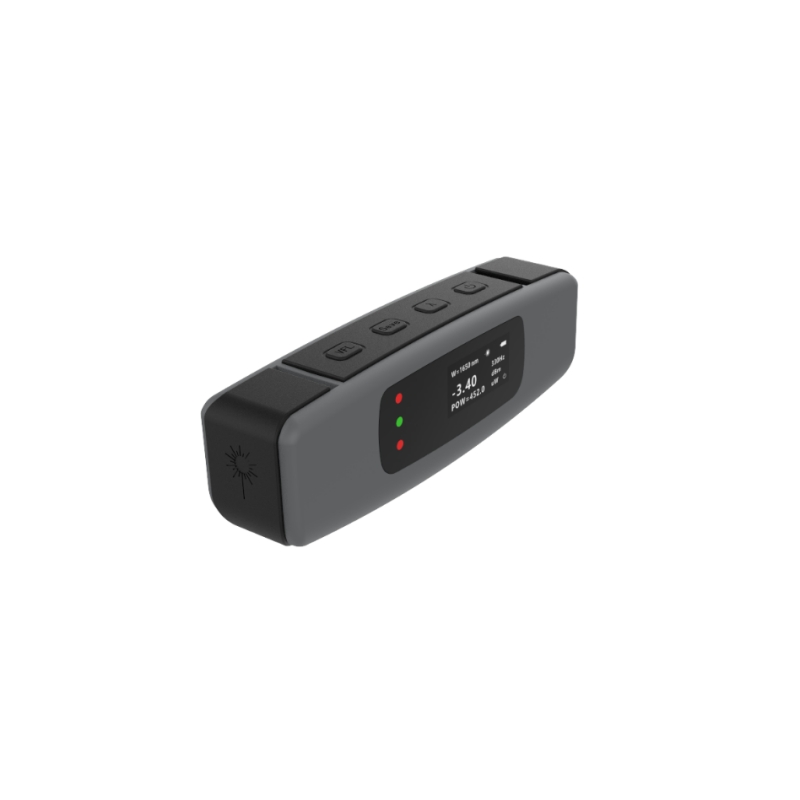

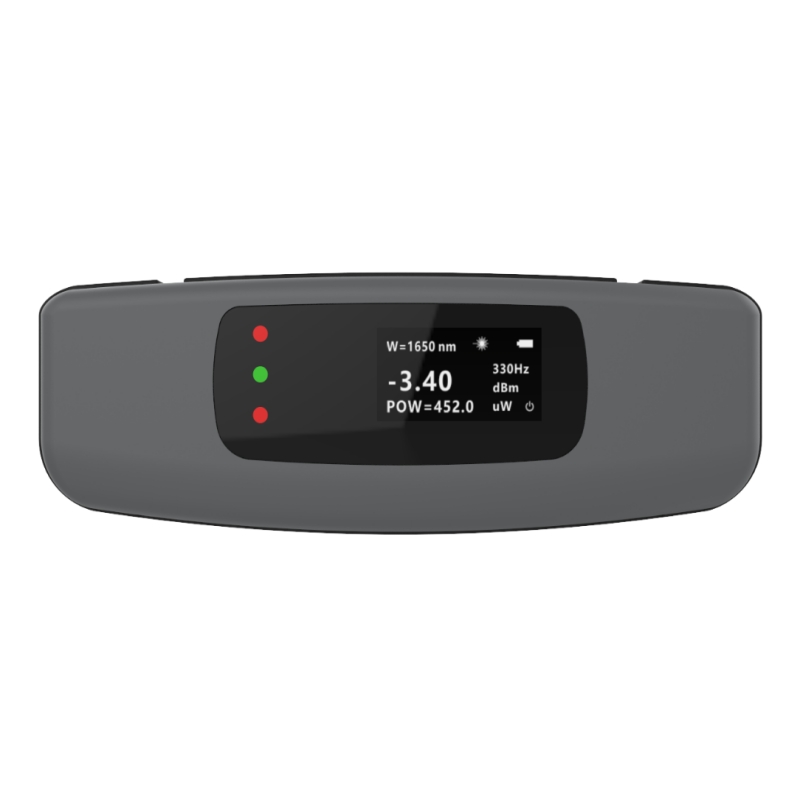

This instrument is a new type of Optical power meter, which uses a 0.96 inch OLED, a 128X64 resolution liquid crystal display, and uses a built-in 500mAh rechargeable lithium battery for power supply. The charging port is a Type C interface, which conforms to the Type C standard. It is small in design, easy to carry in construction, and has a total weight of 50g. It has 1000 pieces of data storage. It supports users to view data and users to correct themselves, and also supports the upper computer to export data and the upper computer to correct. The mW value and dBm value are displayed simultaneously, facilitating the needs of different users. Red light source output power optional: 2mW/5mW/10mW/20mW/30mW/50mW.
Specifications
Optical Power Meter | ||
Measuring range | A | C |
+10~-70dBm | +26~-50dBm | |
Wavelength | 800nm~1700nm | |
Connector | Universal | |
Detector Type | InGaAs | |
Uncertainty | 5% | |
Calibrate wavelength | 850/1300/1310/1490/1550/1625/1650 nm | |
Resolution | mW/uW：0.1%，dBm/dB：0.01dBm | |
Recognizable frequency | CW, 270Hz, 330Hz, 1kHz, 2kHz | |
Memory | 1000（Includes: wavelength, power value, frequency, unit） | |
User correction method | 1：key operation 2：Set through PC software | |
Visual Fault Locator(VFL) | ||
Wavelength | 650±30nm | |
Output power | 2mW/5mW/10mW/20mW/30mW/50mW(Default:10mW) | |
Mode | CW/2Hz | |
Connector | Universal | |
Machine Parameters | ||
LCD | OLED white light (resolution: 128x64), visible under strong light | |
Power | 3.7V/500mAh Lithium battery | |
Charging interface | Type C | |
Operating time | >16 hours（Only Power meter operation） | |
Auto off time | 10 minutes | |
Operation temperature | -10~+50℃ | |
Storage temperature | -40~+60℃(*Lithium batteries are not suitable for long-term high-temperature storage) | |
Relative humidity | 0~95%（No condensation） | |
Size/weight | 98X33X23mm /50g | |
