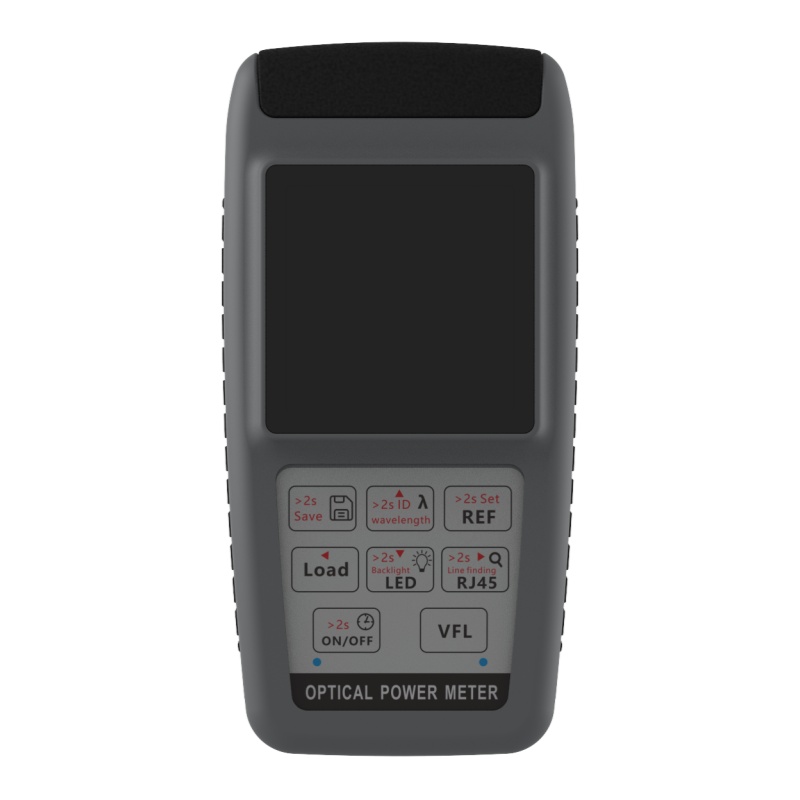

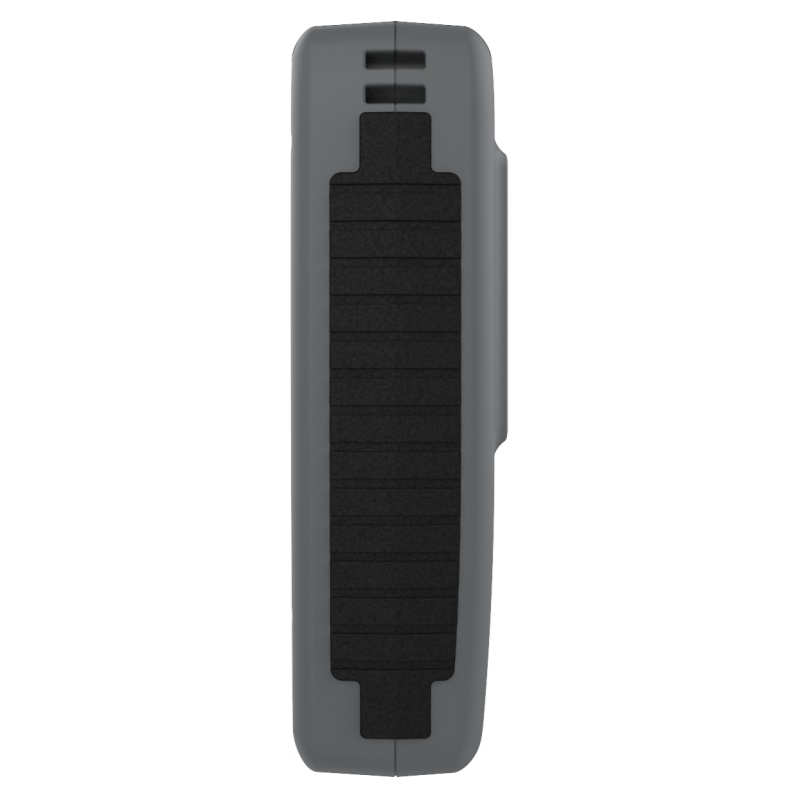

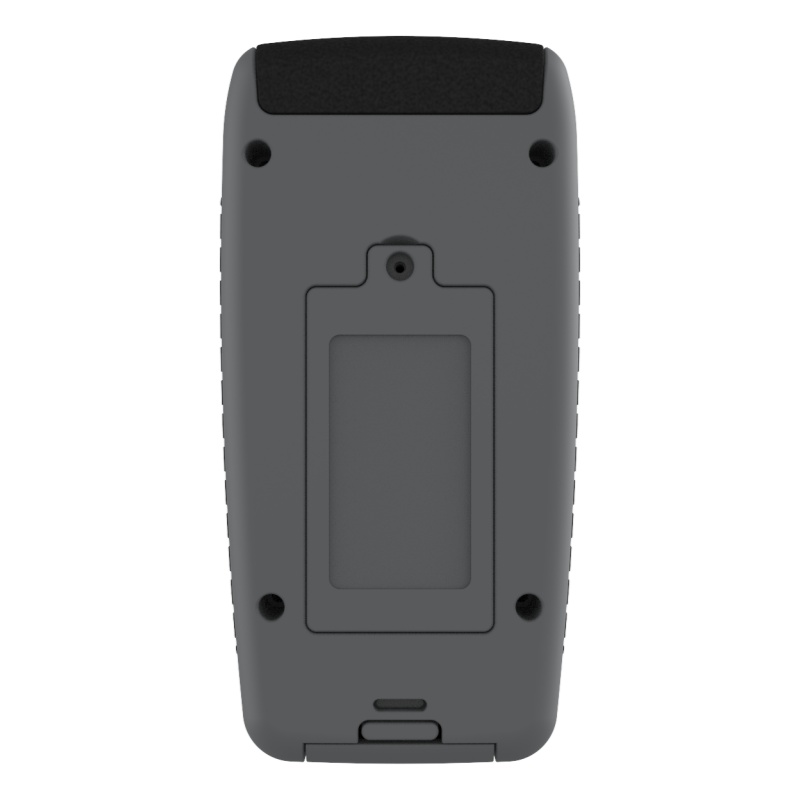

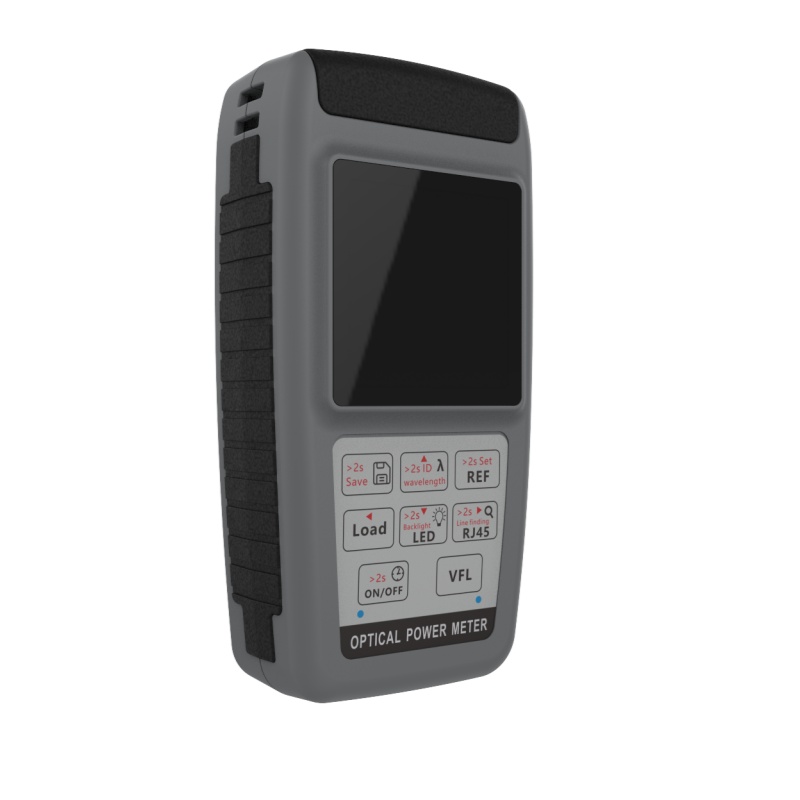

FFS800 is a multifunctional optical measuring instrument that integrates optical power meter, visual fault locator, lighting, as well as network cable sequence matching and line finding.
Specifications
Model | FFS800A | FFS800C | |
Calibrated Wavelength | 850/1270/1300/1310/1490/1550/1577/1610/1625/1650nm | ||
Detector Type | InGaAs | ||
Measuring Range | -70 to +10dBm | -50 to +26dBm | |
Resolution | mW/uW：0.1%，dBm/dB：0.01dBm | ||
Uncertainty | 5% | ||
Connector | 2.5mm universal | ||
Modulation Freq. Detection | 270Hz, 330Hz, 1KHz, 2KHz | ||
VFL Module | Green | Red | |
Wavelength/work mode | 515nm, CW&.2Hz | 650nm, CW&.2Hz | |
VFL output power | 10mW/20mW | 10mw/20mW/30mW/50mW | |
USB port for data transmission / charging | Type C | ||
Operating/ Storage Temperature | -10℃ ~ 50℃/ -20℃ ~ 70℃ | ||
Power supply | 2 * AA Batteries/2000mAh/3.7V lithium battery | ||
Dimension (mm) / Weight | 133*67*38 ( L*W*H ) / 150g | ||
