High-Speed Data Transfer: Supporting data rates of up to 10Gbps, this transceiver ensures fast and secure data transmission, meeting the demands of modern communication networks.
Durable and Reliable: Constructed with metal materials and certified by CE, FCC, and RoHS, this product guarantees high-quality performance and long lifespan, backed by a 3-year warranty.
User-Friendly Compatibility: This SFP transceiver is designed to work with various devices, including those from your user input (please specify the device type for more accurate information), ensuring a smooth transition to high-speed fiber optic connectivity.
Features
RoHS compliant and Lead Free.
Up to 9.95Gb/s to 10.3Gb/s Bi-directional Data links.
Hot-pluggable SFP footprint.
Built-in Digital Diagnostics Functions.
Low power dissipation, high performance.
10Gbps Fiber Channel.
LC-Duplex fiber connect
Temperature options:(Commercial) 0°C to 70°C , (Extended) -10°C to 85°C, (Industrial) -40°C to 85°C.
Single 3.3 V power supply.
Specifications
Part No. | Data Rate | Distance | Wavelength | Output Power | Sensitivity | Connector | DDM |
SFP-GE-SX-MM850 | 1.25G | 550m | 850nm | -3~-9dBm | <-18dBm | LC | Yes |
SFP-GE-LX-SM1310 | 1.25G | 10km | 1310nm | -3~-9dBm | <-21dBm | LC | Yes |

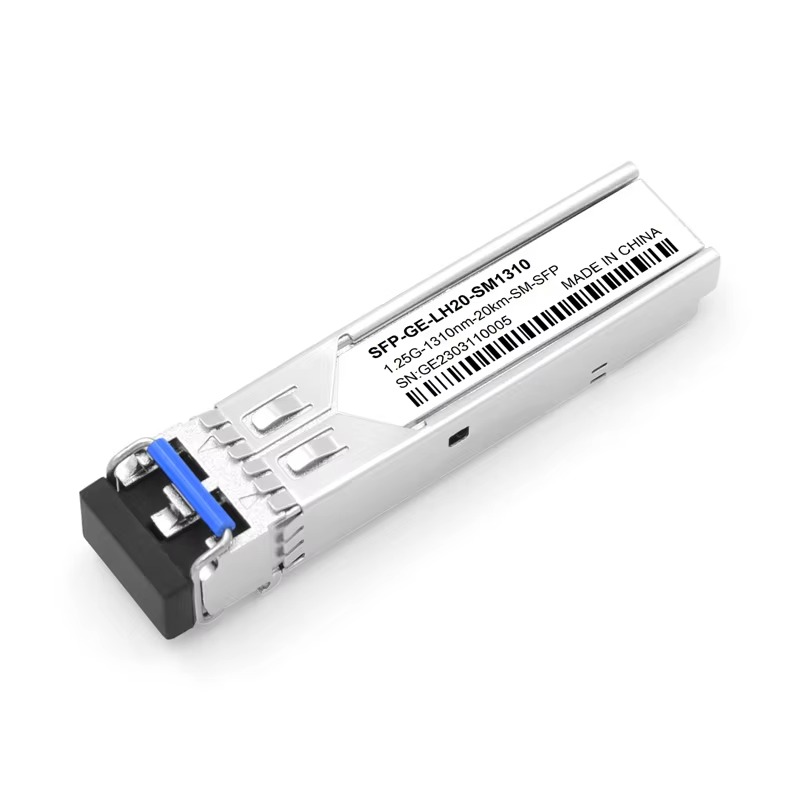

SFP-GE-LH20-SM13 | 1.25G | 20km | 1310nm | -3~-9dBm | <-22dBm | LC | Yes |
SFP-GE-LH40-SM13 | 1.25G | 40km | 1310nm | 0~-5dBm | <-24dBm | LC | Yes |
SFP-GE-LH80-SM13 | 1.25G | 80km | 1550nm | 5~-2dBm | <-26dBm | LC | Yes |
SFP-GE-LH20-SM34 | 1.25G | 20km | TX1310nm/RX1490nm | -3~-9dBm | <-21dBm | LC | Yes |
SFP-GE-LH20-SM43 | 1.25G | 20km | TX1490nm/RX1310nm | -3~-9dBm | <-21dBm | LC | Yes |
SFP-GE-LH40-SM34 | 1.25G | 40km | TX1310nm/RX1490nm | 0~-5dBm | <-21dBm | LC | Yes |
SFP-GE-LH40-SM43 | 1.25G | 40km | TX1490nm/RX1310nm | 0~-5dBm | <-21dBm | LC | Yes |
SFP-GE-LH40-SM45 | 1.25G | 80km | TX1490nm/RX1550nm | 5~-2dBm | <-26dBm | LC | Yes |
SFP-GE-LH40-SM54 | 1.25G | 80km | TX1550nm/RX1490nm | 5~-2dBm | <-26dBm | LC | Yes |
SFP-GE-LH05-SC35 | 1.25G | 5km | TX1310nm/RX1550nm | -3~-9dBm | <-21dBm | SC | Yes |
SFP-GE-LH05-SC53 | 1.25G | 5km | TX1550nm/RX1310nm | -3~-9dBm | <-21dBm | SC | Yes |
SFP-GE-LH20-SC35 | 1.25G | 20km | TX1310nm/RX1550nm | -3~-9dBm | <-21dBm | SC | Yes |
SFP-GE-LH20-SC53 | 1.25G | 20km | TX1550nm/RX1310nm | -3~-9dBm | <-21dBm | SC | Yes |
SFP-GE-LH40-SC35 | 1.25G | 40km | TX1310nm/RX1550nm | 0~-5dBm | <-24dBm | SC | Yes |
SFP-GE-LH40-SC53 | 1.25G | 40km | TX1550nm/RX1310nm | 0~-5dBm | <-24dBm | SC | Yes |
SFP-GE-LH40-SC45 | 1.25G | 80km | TX1490nm/RX1550nm | 5~-2dBm | <-26dBm | SC | Yes |
SFP-GE-LH40-SC54 | 1.25G | 80km | TX1550nm/RX1490nm | 5~-2dBm | <-26dBm | SC | Yes |
