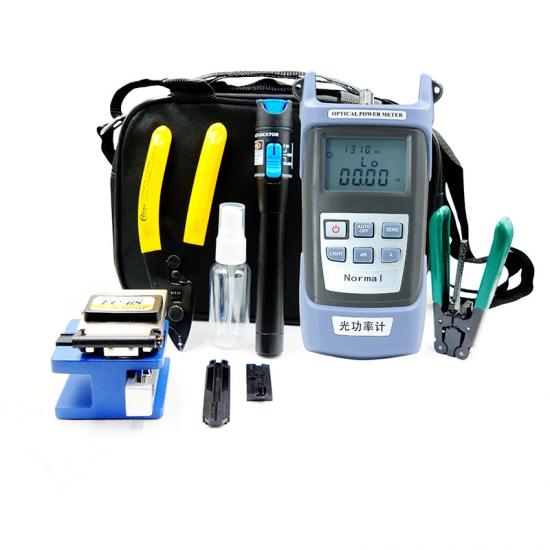

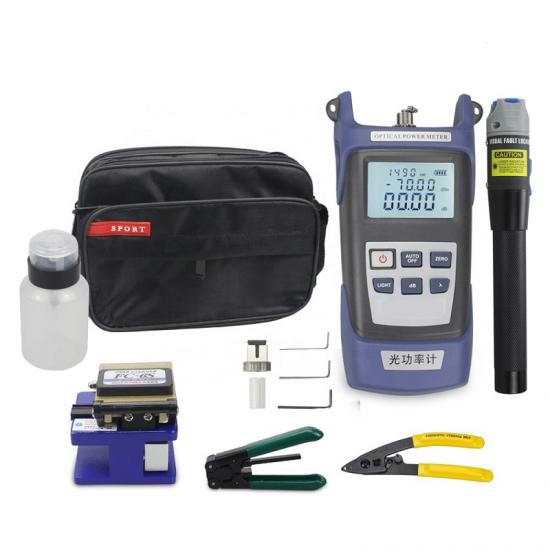

The Fiber Optic FTTH tool kit is a simple and convenient integration solution for FTTH fiber-to-the-home quick-connect construction, such as, stripping, fiber cutting, cleaning and testing. It is economical and practical, and is an ideal tool for construction operators.
Specifications
Model | Optical power meter-A | Optical power meter-B |
Measurement range | -70~+10 | -50~+26 |
Type of probe | InGaAs | |
Range of wavelength | 800~1700 | |
Uncertainty | ±5% | |
Standard wavelength (nm) | 850, 980, 1300, 1310, 1490, 1550, 1625nm | |
Resolution | Linear indication: 0.1% Logarithmic indication: 0.01dBm | |
Working temperature (°C) | -10~+60 | |
Storage temperature (°C) | -25~+70 | |
Auto power-off time (min) | 10min | |
Continuous working hours | At least 48 hours | |
Dimensions (mm) | 190×100×48mm | |
Power supply | AA battery | |
Weight(g) | 400g | |

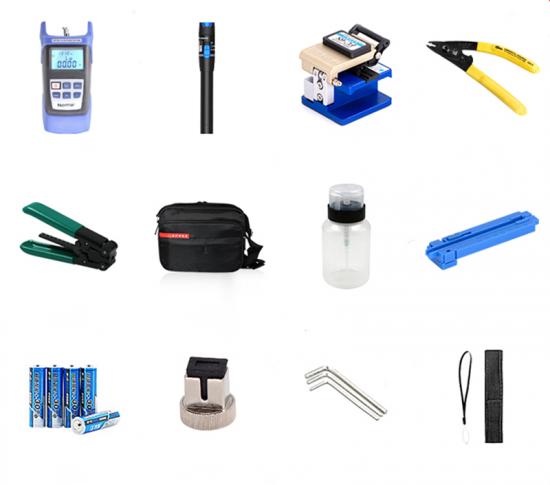

Item 1: Optical power meter
Color Orange or Blue optional,
Default measurement range: -70~+10dBm
Support SC, FC, ST connector,
Support testing for 7 kind of wavelength
Support regular shut down with backlight, automatic shut down
Item 2: Visual Fault locator 5KM
Optical pen/Red laser pointer 5km, other distance 10/20/30km optional
Imported laser head, High thermal conductivity
Aluninum alloy case, good durability
Item 3: FC-6S fiber cleaver
Imported refining tungsten steel blade , Automatic rebound
Precision Blade features 12 blade positions with 3,000 cleavers per position
Item 4: Miller Clamp
125um fiber coating layer for peeling
Top 1.98mm open hole stripping out shield
Item 5: Wire Stripper
Used for 3.1 x 2.0 mm rubber-insulated wire
Belt scale, fatigue resistance, pressure resistance
Item 6: Alcohol Bump Bottle
Offering empty plastic bottle

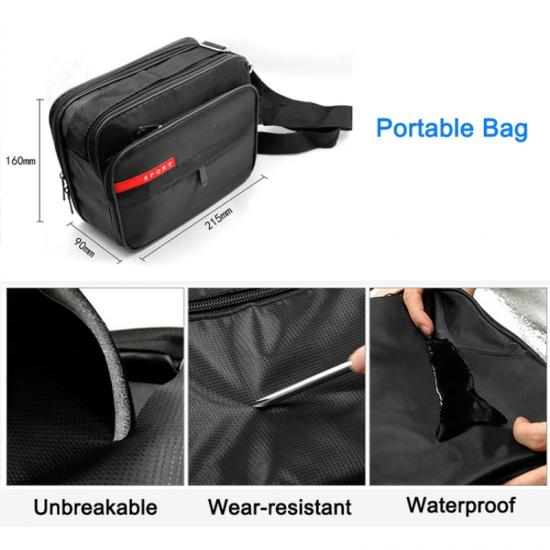

Item 7: Carry Bag
Portable bag/Toolkit, is made of high-density oxford fabric
Unbreakable, Wear-resistant, Waterproof
Item 8: Fiber Cleaning Napkin (paper)
50pcs/bag
Item 9: Others
Other accessories, "L" Tool, FC Adapter, etc
