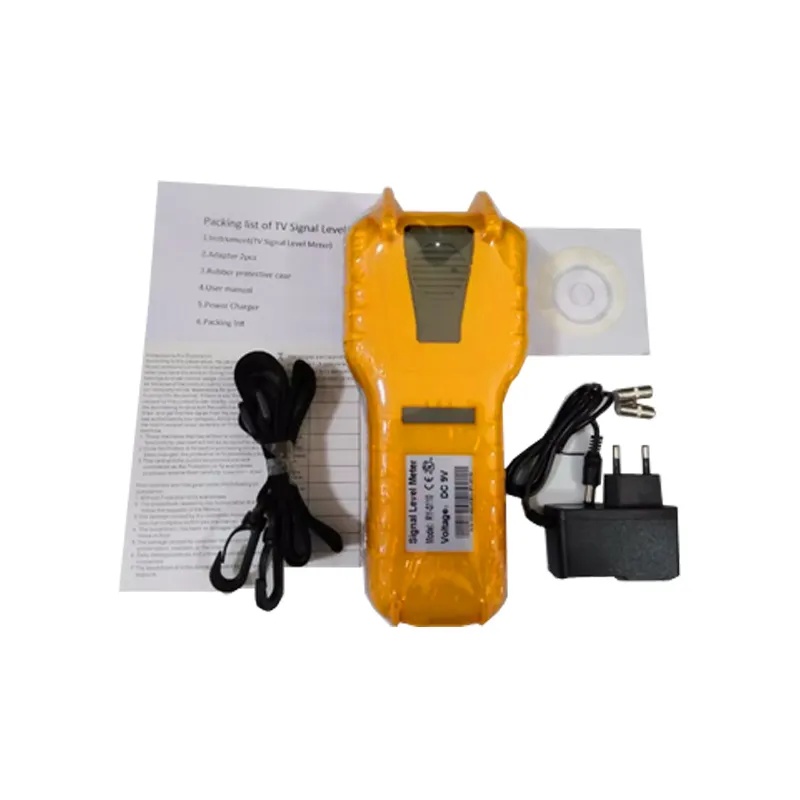

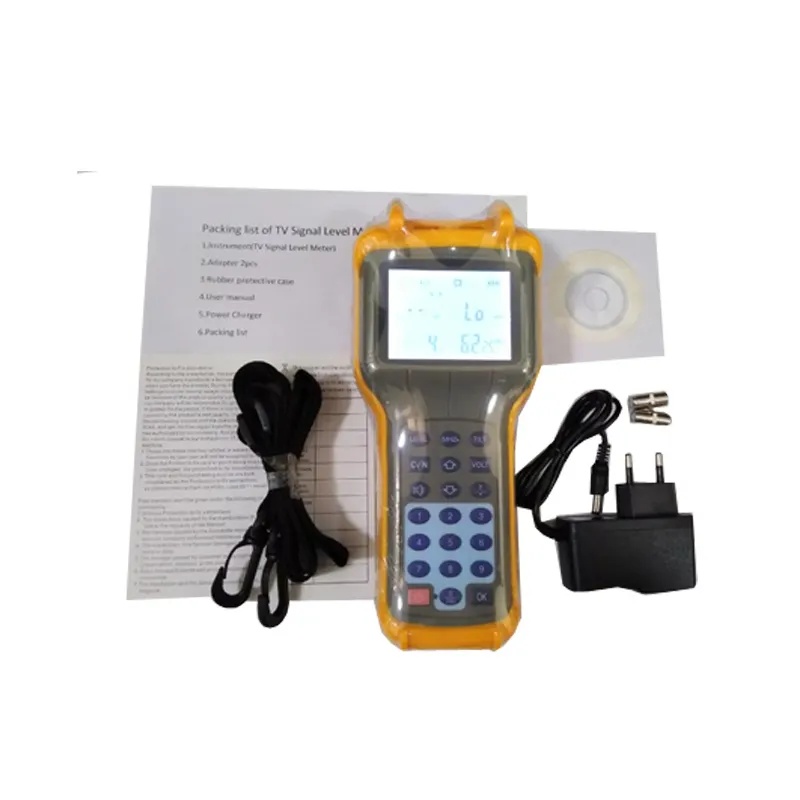

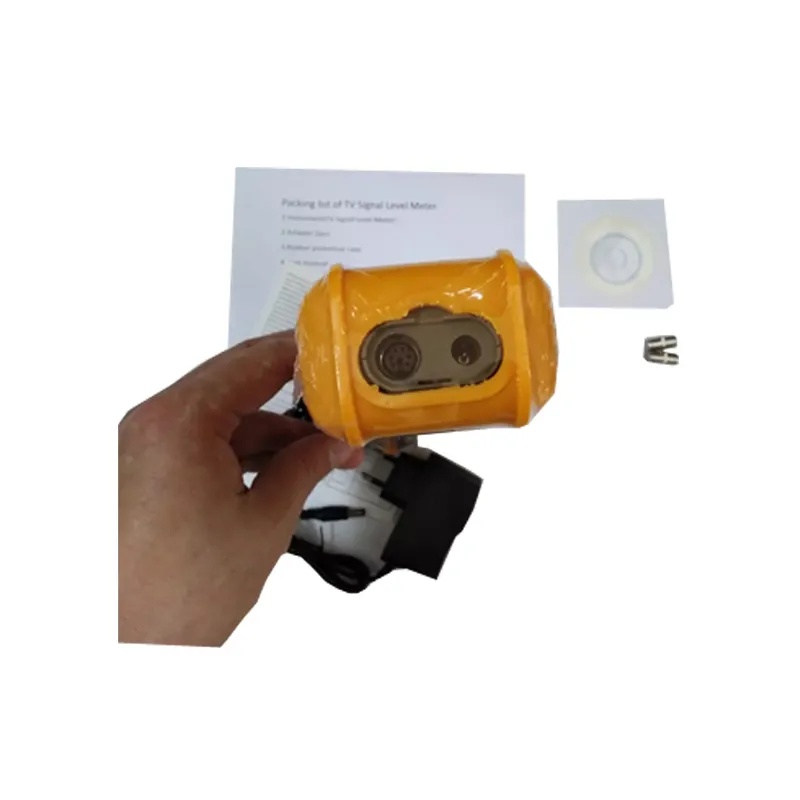

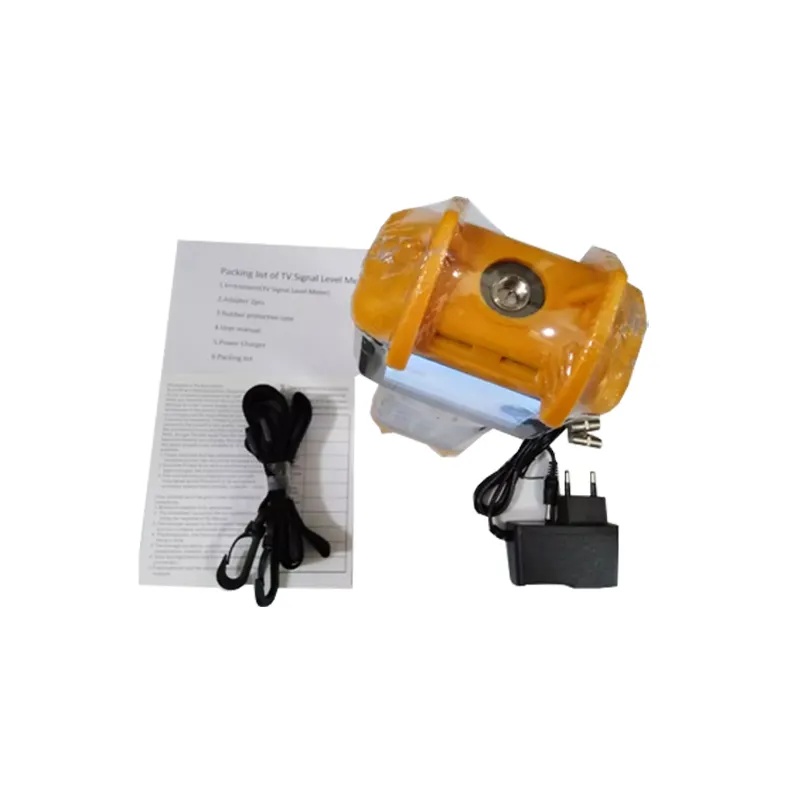

CATV Signal Level Meter RY200D Cable TV Tester DB Meter
Handhold Design
Level and V/A
Tilt and C/N measure
Trunk Voltage
Channel and single frequency  mode
Support QAM 32 64 128/ITU-TJ.83 Annex A/B/C
Analog, Digital and Dual channel measurement
Channel Power, MER, BER
Product description

This product applies to the need of the television and cable television engineering installation and detection, it is the high-performance surveying instrument specially designed for the cable television technical personnel.
The instrument adopts the all-number display, the readings on the measuring instrument are clear and precise, and owing to the introduction of the micro processing unit, therefore, it makes its functions stronger, the precision higher, operation more flexible and convenient. The large screen figure monitor is very convenient to measure the main technical targets of CATV system.

Specifications

Digital DVB

Frequency Scope

47MHz-870MHz, D models: 5MHz-870MHz

Modulation

DVB-C/ITU-T

Support

64QAM/256QAM

Digital Average Power

30dBuV-110dBuV

Precision

±2dB

Symbol Rate

1-7MS/S

Modulate Error Rate(MER)

22dB-39dB

Bit Error Rate(BER)

RS 1E-3 - 1E-9

Analog TV

Level

20dBuV-120dBuV

Precision

±1.5dB

Channel Scan

150

Power Supply

Battery

7.2V/1500mAH lithium battery

AC Supply

AC 90V-220V, 50Hz-60Hz

Working Time/Charging Time

6h/3h
