Visual Fault Locator FFS103-FutureFiber Solutions

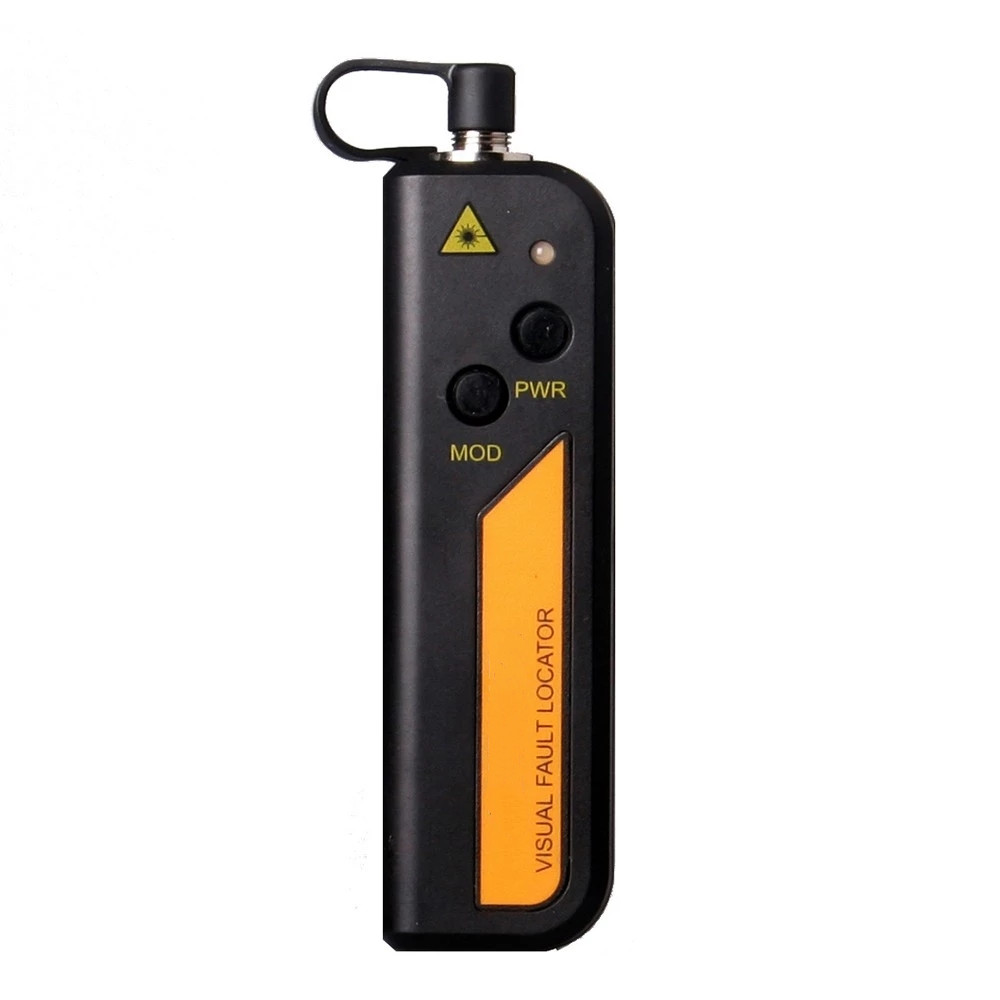

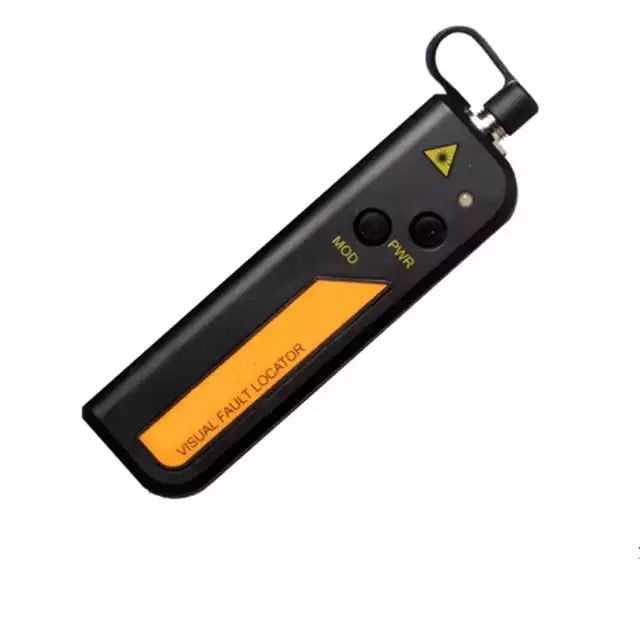

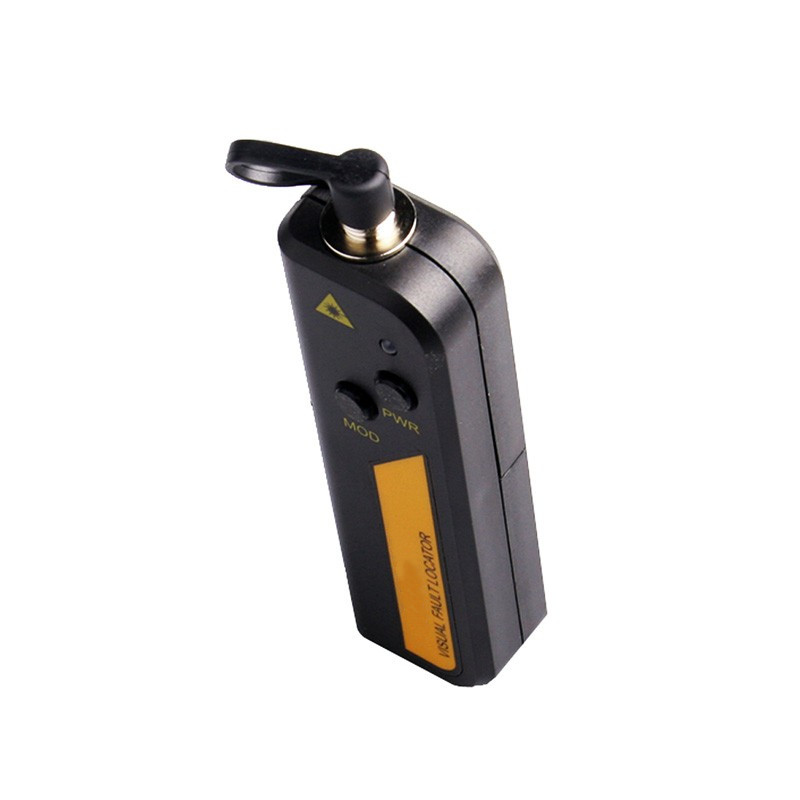

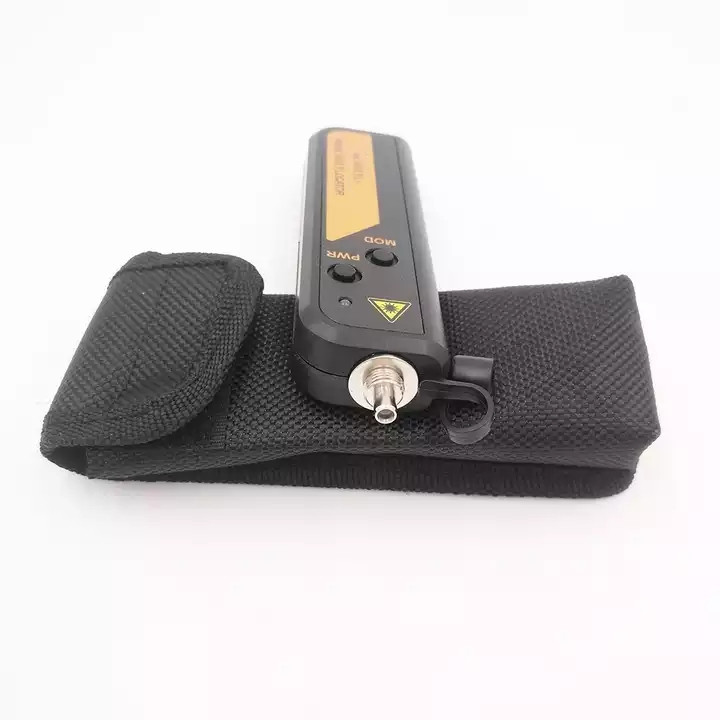

Visual Fault Locator FFS103

It is one efficient and low-cost basic fiber test tool; it provides a visible way to find fiber faults and identify fibers in an optical network during and after installation.
It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR dead zone
End-to-end visual fiber identification

Product description

Features

Constant & stable output power

Low battery warning, reminds users to change the battery timely.

Long battery life (up to 40 hours with AAA batteries)

Pocket size and light weight, easy to use.

Re-changeable ceramic tube, to avoid returning to manufacturer for this small fault.

Specifications

Central Wavelength	650nm±10nm
Emitter Type	FP-LD
Output Power	1mw or 10mw
Optical Connector	FC/2.5mm universal connector For 1.25mm connectors, FC-1.25mm Hybrid adaptor can be optional on customer requests
Operating Model	Both CW and Pulse(2Hz) available
Power Supply	Two AAA alkaline batteries
Battery Operating Time	650nm@1mw ≥45hours;650nm@10mw≥15hours Test with Panasonic LR6 AAA ALKALINE battery
Operating Temperature	-10~+60 (℃)
Storage Temperature	-25~+70 (℃)
Dimension(mm)	1305035
Weight	100g
