FTTH Green Light VFL FFS107-FutureFiber Solutions

FTTH Green Light VFL FFS107

It is one efficient and low-cost basic fiber test tool; it provides a visible way to find fiber faults and identify fibers in an optical network during and after installation.
It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR dead zone

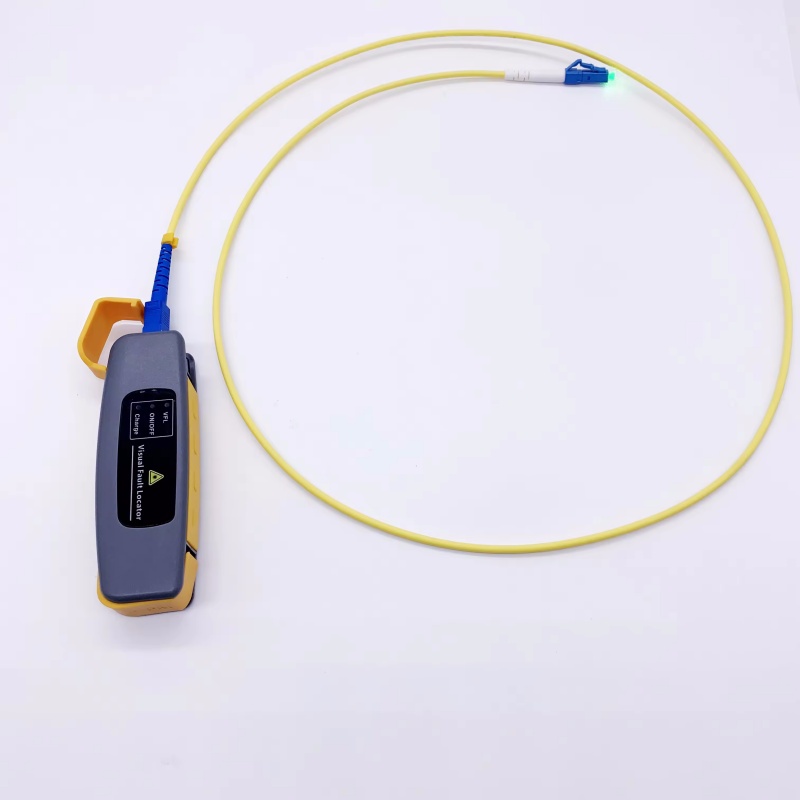

End-to-end visual fiber identification

Product description

Features

1. 500mAh rechargeable lithium battery

2. Type C charging port

3. Stable power output, not affected by battery level.

4. CW/2Hz two output modes

5. Compact, lightweight, and easy to carry.

Specifications

VFL
Wavelength	515 or 650±30nm
Output Power	5mw/10mw(default)
Mode	CW/2Hz

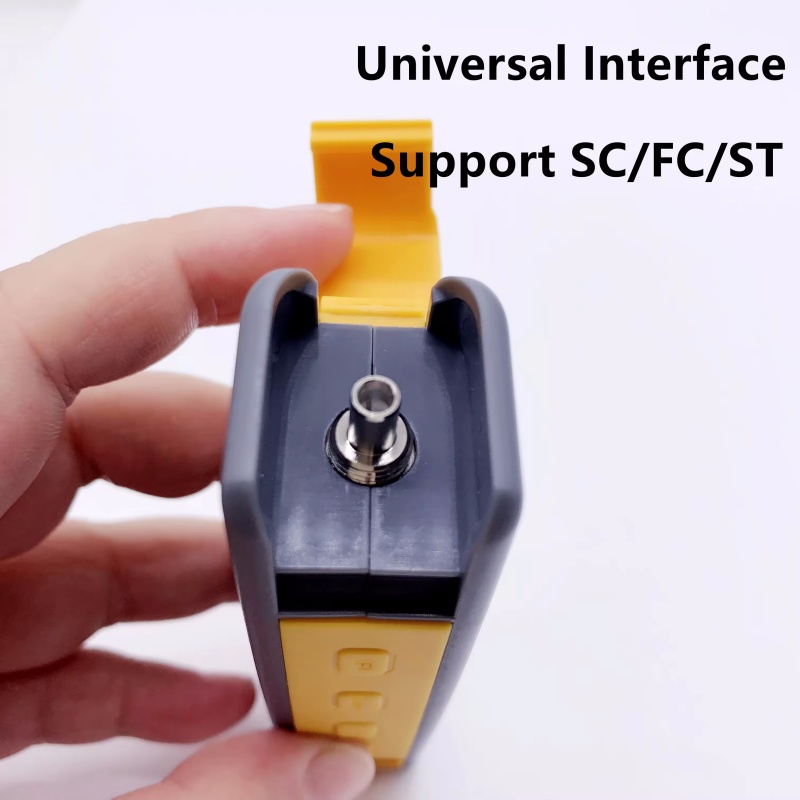

Connector	Universal
Power	3.7V/500mAh lithium battery
Charging Interface	Type C
Operating Time	>5 hours(10mw continuous power output)
Operation Temperature	-10 to +50℃
Storage Temperature	-40 to +60℃(lithium battery is not suitable for long-term high temperature storage)
Relative Humidity	0-95%(no condensation)

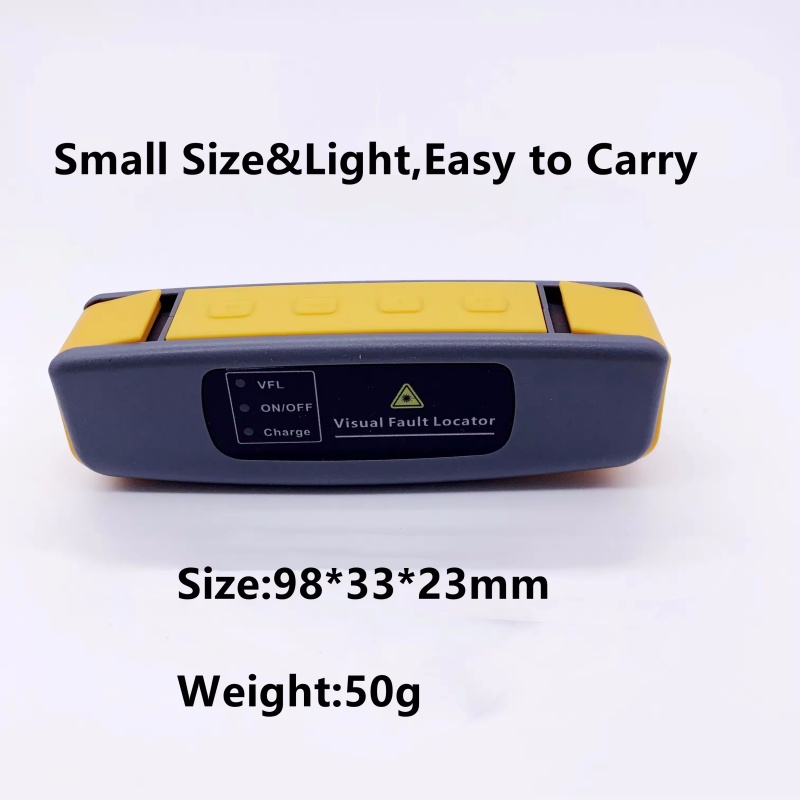

Size/weight	98x33x23mm/50g
